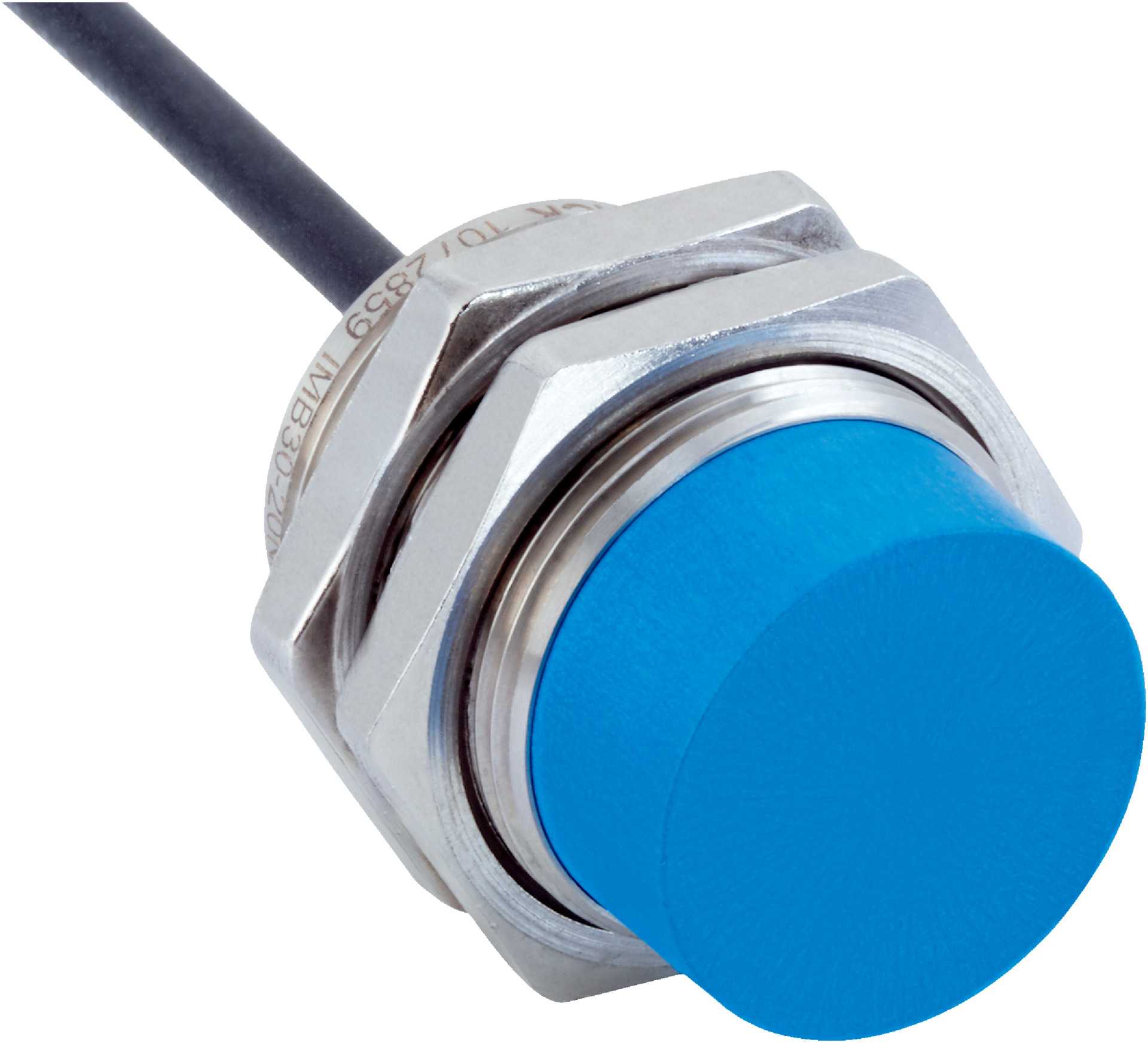

M30 Proximity Sensor | Short-body Inductive Design | PNP Normally Closed | IP67/IP68/IP69K Rated | by SICK
The M30 Proximity Sensor is designed for industrial automation, featuring a short-body inductive design with a sensing range of 20 mm and a high switching frequency of 500 Hz. Ideal for harsh environments, this sensor is resistant to coolants and lubricants, ensuring reliable performance in challenging conditions. With an IP67/IP68/IP69K enclosure rating, it offers exceptional protection against dust and water, making it perfect for mobile machines and robust applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally closed (NC)
- Switching frequency: 500 Hz
- Sensing range (Sn): 20 mm
- Safe sensing range (Sa): 16.2 mm
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Cable: PUR, 3-wire, 2 m length, diameter 3.9 mm
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of Sr: ± 10%
- Enclosure rating: IP67, IP68, IP69K
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Operating temperature: -40 °C to +85 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Protection class: III
- Tightening torque max: ≤ 70 Nm
- Dimensions (H x L x W): 41mm x 41mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type with sensing range of 20 mm
- High switching frequency of 500 Hz with PNP normally closed output
- Cable connection, 3-wire, 2 m length with PUR cable material
- Enclosure rating IP67, IP68, and IP69K for high protection
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

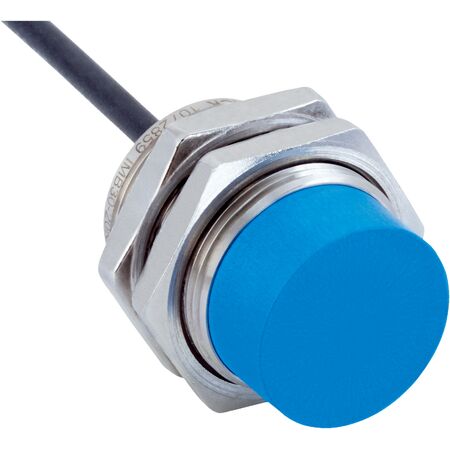

The SICK IMG30-20NPOZU2K proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
