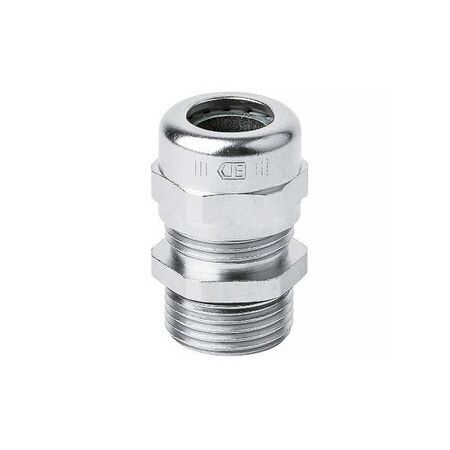

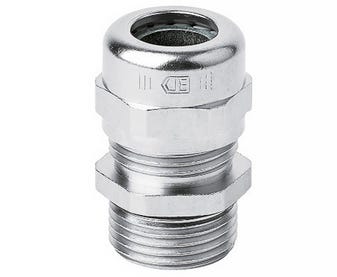

M32 Cable Gland | IP68 Rated | Nickel Plated Brass | 15-21mm Cable OD by Cabac
The Cabac Nickel Plated Brass Gland M32 is an unarmoured metric cable gland designed for sealing and securing PVC, XLPE, and synthetic cables. It features a nickel-plated brass body, IP68 rating, and a camera shutter style sealing mechanism for wide cable diameter compatibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac Nickel Plated Brass Gland M32 Cable OD 15-21mm
Brand: Cabac
SKU: GU32
Alternatively Known As: M32 Cable Gland, Nickel Plated Brass Cable Gland, GU32 Cable Gland, Metric Cable Gland M32, IP68 Cable Gland
Technical Specifications
- IP Rating: IP68
- Material: Nickel plated brass body, Polyamide 6 insert, Neoprene seal and O-ring
- Cable Diameter Range: 14mm to 21mm
- Conformant Standard: DIN 46 319 (brass glands metric)
- Threading: According to IEC 423, IEC 423A and EN 60423
- Chemical Resistance: Resistant to organic solvents, mineral, animal and vegetable oils, fat and petrol
- Operating Temperature: -20°C to +100°C
- Strain Relief and Twisting Protection: To DIN VDE 0619
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.1 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Rated IP68 for superior ingress protection
- Camera shutter style sealing mechanism for wide cable diameter range
- Strain relief and twisting protection rated to DIN VDE 0619
- Polyamide 6 insert and neoprene seals are self-extinguishing
- Chemical resistant to organic solvents, oils, fats, and petrol
- Continuous operating temperature from -20°C to +100°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with safety standards. Lock nut sold separately and must be installed correctly.
Applications
- Sealing and securing PVC, XLPE, and synthetic cables in electrical installations
- Industrial and commercial cable management requiring high ingress protection
- Use in environments exposed to oils, solvents, and varying temperatures
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel plated brass construction reduces need for frequent replacements
- Self-extinguishing materials enhance safety and reduce fire risk
- Chemical resistance extends product lifespan in harsh environments
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Nickel Plated Brass Gland M32 Cable OD 15-21mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
