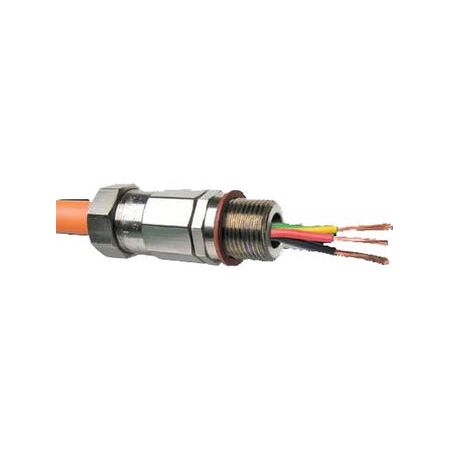

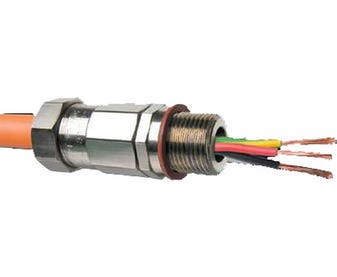

M32 X 1.5 Nicote Barrier Cable Gland | IP66/68 Rated | Corrosion-Resistant Brass | Hazardous Area by Cabac
The M32 X 1.5 Nicote FLPW Barrier Cable Gland by Cabac is designed for steel wire armoured cables in hazardous areas, providing a secure epoxy barrier seal and corrosion resistance with IP66/68 rating for indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M32 X 1.5 NICOTE BARRIER CABLE GLAND
Brand: Cabac
SKU: FLPW326B
Alternatively Known As: Nicote Barrier Gland, FLPW Cable Gland, Hazardous Area Cable Gland, SWA Cable Gland
Technical Specifications
- Material: Nickel-plated brass components
- Ingress Protection: IP66/68 (30m)
- Protection Class: Ex d I/IIC
- Compliance: ANZEx 11.2001X, IECEx SIM 11.0002X, IEC 60079-0:2004, IEC 60079-1:2007, IEC 61241-0:2004, IEC 61241-1:2004
- Dimensions (H x L x W): 40mm x 70mm x 40mm
- Weight: 0.2 kg
Key Features
- Barrier epoxy seal provides a secure seal for cable cores
- Armour clamp and outer sheath seal secure the armour and seal the outer sheath
- Constructed from corrosion-resistant nickel-plated brass
- Ingress Protection rated IP66/68 (30m)
- Suitable for hazardous environments with Ex d I/IIC protection class
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced with hazardous area electrical equipment to ensure compliance and safety.
Applications
- Use with steel wire armoured (SWA) cables in hazardous environments
- Suitable for indoor and outdoor use in hazardous areas
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
- Seals prevent ingress of dust and water, protecting electrical systems and reducing environmental contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The M32 X 1.5 Nicote FLPW Barrier Cable Gland is available for immediate purchase, ideal for hazardous area cable management in industrial and commercial applications.
