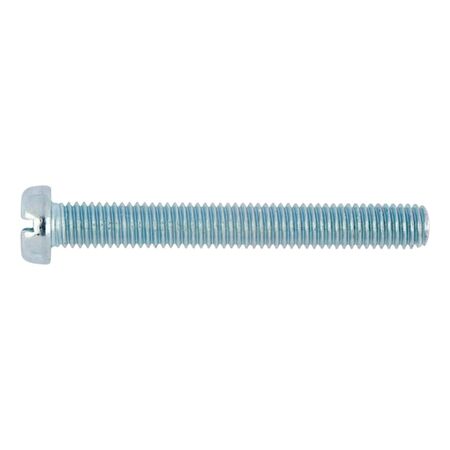

M4 Cheese Head Screw | Zinc Plated Steel | DIN 84 Compliant | by Wurth
The M4 Cheese Head Screw is designed for reliable fastening in various applications, featuring a zinc-plated steel construction for enhanced corrosion resistance. Ideal for automotive and industrial sectors, this screw complies with DIN 84 standards, ensuring safety and durability in machinery and equipment assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4 Cheese Head Screw | Zinc Plated Steel | DIN 84 Compliant | by Wurth
Brand: Wurth
SKU: 40430
Alternatively Known As: M4 Cheese Head Screw, Zinc Plated Slot Screw, DIN 84 Screw, Metric Thread Screw
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 30 mm
- Head diameter (dk): 7 mm
- Head height (k1): 2.6 mm
- Standards: DIN 84
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Cheese head
- Drive type: Slot
- Internal drive: Slot
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.6mm x 30mm x 4mm
- Weight: 0.1 kg
Key Features
- Made from steel with zinc plating for corrosion resistance
- Cheese head design with slot drive for easy installation
- Complies with DIN 84 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- General fastening applications in machinery and equipment
- Assembly of metal components
- Use in automotive and industrial sectors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M4 x 30mm Zinc Plated Steel Cheese Head Screw DIN 84 is available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
