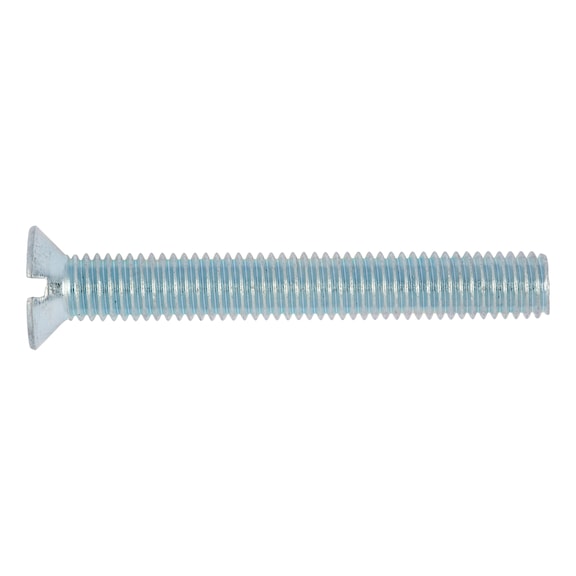

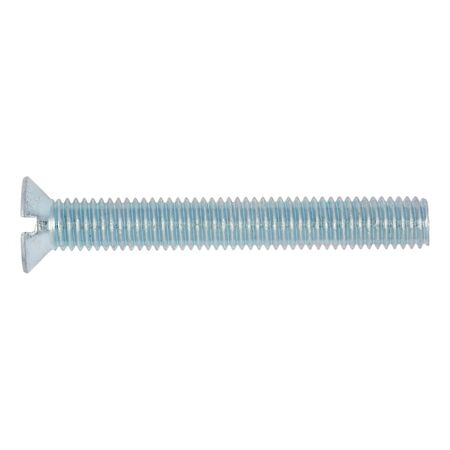

M4 Countersunk Bolt | Zinc Plated Steel | DIN 963 Compliant | Slot Drive | by Wurth
The M4 Countersunk Bolt is crafted from zinc plated steel, ensuring corrosion resistance and durability. With a countersunk head and slot drive, it provides a flush fitting ideal for general fastening applications in machinery and equipment. Perfect for automotive, construction, and manufacturing industries, this bolt complies with DIN 963 standards and is RoHS-compliant for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4 Countersunk Bolt | Zinc Plated Steel | DIN 963 Compliant | Slot Drive | by Wurth
Brand: Wurth
SKU: 39410
Alternatively Known As: M4 Countersunk Bolt, Zinc Plated Countersunk Screw, Metric Countersunk Head Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 10 mm
- Head diameter (dk): 7.5 mm
- Head height (k1): 2.2 mm
- Standards: DIN 963
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Slot
- Internal drive: Slot
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.2mm x 10mm x 4mm
- Weight: 0.1 kg
Key Features
- Made from steel with zinc plating for corrosion resistance
- Countersunk head with slot drive for flush fitting
- Complies with DIN 963 standard
- RoHS-compliant ensuring environmental safety
- Metric thread with 0.7 mm pitch
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- General fastening applications in machinery and equipment
- Assembly of metal parts requiring countersunk head bolts
- Suitable for use in automotive, construction, and manufacturing industries
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M4 x 10mm Zinc Plated Steel Countersunk Head Bolt is available for immediate purchase, ideal for industrial and construction fastening applications.
