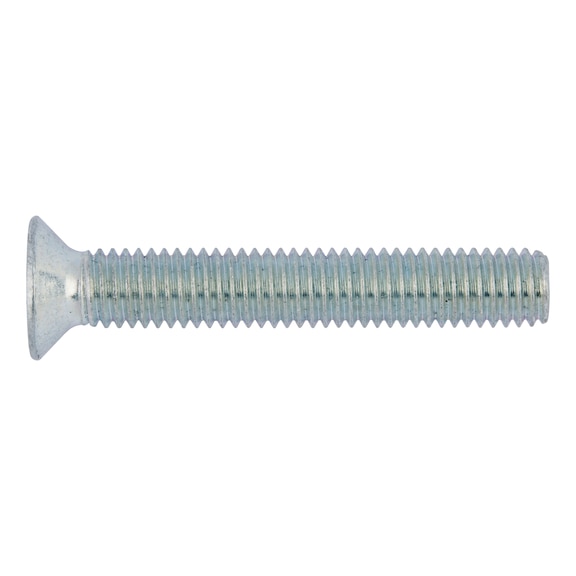

M4 Countersunk Bolt | Zinc Plated Steel | DIN 965 Compliant | Crosshead Drive | by Wurth
The M4 Countersunk Bolt is crafted from zinc plated steel, ensuring corrosion resistance and durability. With a countersunk head design for flush fitting and compliance with DIN 965 standards, this bolt is perfect for general fastening applications in machinery and equipment. Ideal for automotive, construction, and manufacturing industries, it guarantees reliable performance and safety in assembly tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4 Countersunk Bolt | Zinc Plated Steel | DIN 965 Compliant | Crosshead Drive | by Wurth
Brand: Wurth
SKU: 48420
Alternatively Known As: M4 Countersunk Bolt, Zinc Plated Countersunk Screw, Metric Countersunk Head Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 20 mm
- Head diameter (dk): 7.5 mm
- Head height (k1): 2.2 mm
- Standards: DIN 965
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Crosshead
- Internal drive: H2
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.2mm x 20mm x 7.5mm
- Weight: 0.1 kg
Key Features
- Made from steel with zinc plating for corrosion resistance
- Countersunk head design for flush fitting
- Crosshead drive type with H2 internal drive
- Complies with DIN 965 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- General fastening applications in machinery and equipment
- Assembly of metal components requiring countersunk head bolts
- Suitable for use in automotive, construction, and manufacturing industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M4 x 20mm Zinc Plated Steel Countersunk Head Bolt is available for immediate purchase, ideal for industrial and construction fastening applications.
