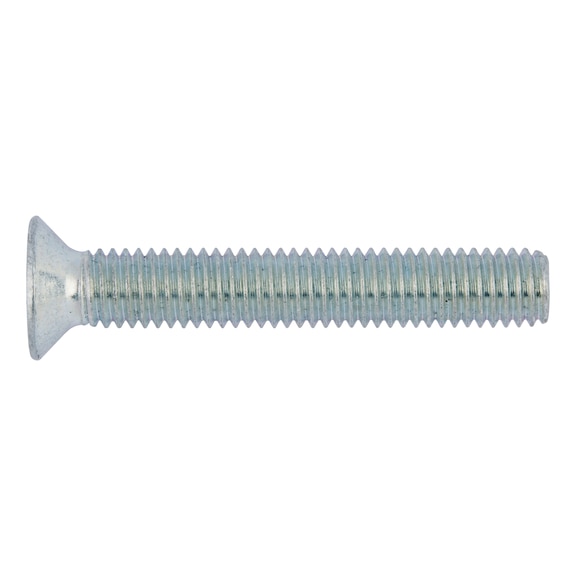

M4 Countersunk Screw | Zinc Plated | Crosshead Drive | RoHS Compliant | by Wurth
The M4 Countersunk Screw is designed for a flush finish in various fastening applications. With a zinc plated surface for corrosion resistance and a crosshead drive type for easy installation, this screw is perfect for automotive, construction, and manufacturing industries. Built to DIN 965 standards, it ensures reliability and durability in your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4 Countersunk Screw | Zinc Plated | Crosshead Drive | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 48412
Alternatively Known As: M4 Countersunk Screw, Zinc Plated Crosshead Bolt, Metric Countersunk Fastener
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 12 mm
- Head diameter (dk): 7.5 mm
- Head height (k1): 2.2 mm
- Standards: DIN 965
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Crosshead
- Internal drive: H2
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.2mm x 12mm x 4mm
- Weight: 0.1 kg
Key Features
- Countersunk head for a flush finish
- Crosshead drive type for easy installation
- Zinc plated surface for corrosion resistance
- RoHS-compliant material
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening integrity.
Applications
- General fastening applications in machinery and equipment
- Assembly of metal components requiring flush surface finish
- Use in automotive, construction, and manufacturing industries
Standards & Compliance
- AS/NZS 4762 – High tensile steel fasteners
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M4 x 12mm Zinc Plated Steel Countersunk Head Crosshead Bolt DIN 965 is available for immediate purchase, ideal for industrial and construction fastening applications.
