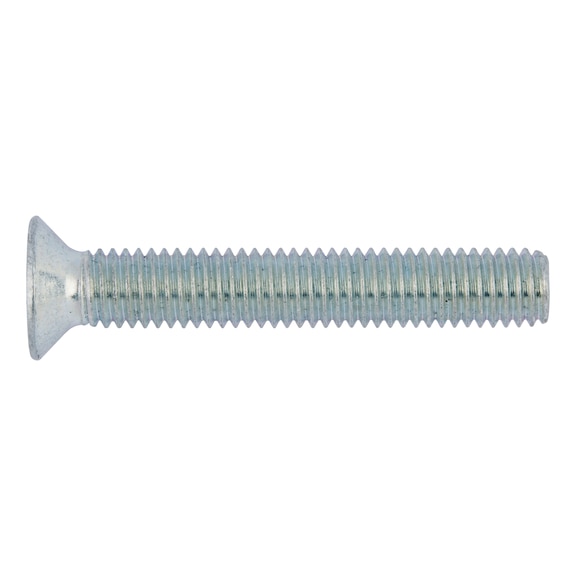

M4 Countersunk Screw | Zinc Plated Steel | DIN 965 Compliant | Crosshead Drive | by Wurth
The M4 Countersunk Screw is designed for secure fastening in various applications, featuring a zinc plated steel construction for enhanced corrosion resistance. With a countersunk head for a flush finish and a crosshead drive type, this screw is ideal for automotive, construction, and machinery assembly. RoHS-compliant, it ensures environmental safety while providing reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4 Countersunk Screw | Zinc Plated Steel | DIN 965 Compliant | Crosshead Drive | by Wurth
Brand: Wurth
SKU: 48425
Alternatively Known As: M4 Countersunk Screw, Zinc Plated Metric Screw, Crosshead Countersunk Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 25 mm
- Head diameter (dk): 7.5 mm
- Head height (k1): 2.2 mm
- Standards: DIN 965
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Crosshead
- Internal drive: H2
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.2mm x 25mm x 7.5mm
- Weight: 0.1 kg
Key Features
- Made from steel with zinc plating for corrosion resistance
- Countersunk head design for flush surface finish
- Crosshead drive type with H2 internal drive for secure fastening
- Complies with DIN 965 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- General fastening applications in machinery and equipment
- Assembly of metal components requiring countersunk screws
- Suitable for use in automotive, construction, and manufacturing industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M4 x 25mm Zinc Plated Steel Countersunk Head Screw is available now for immediate purchase. Ideal for industrial, automotive, and construction fastening applications.
