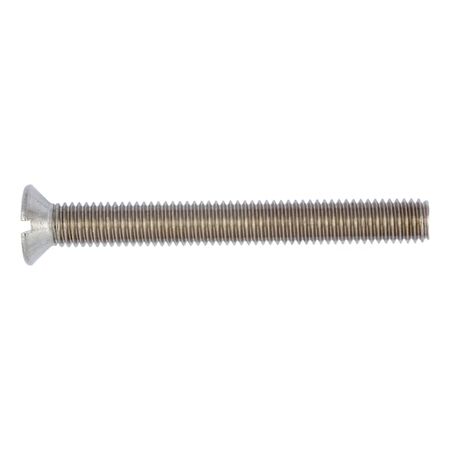

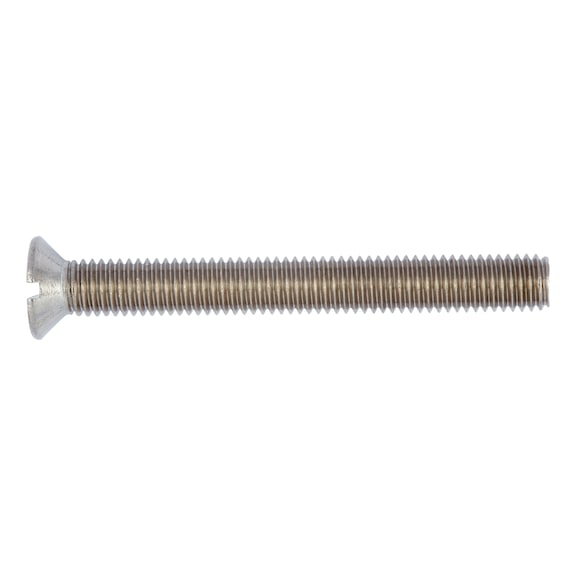

M4 Countersunk Slot Head Bolt | Stainless Steel A2 | DIN 963 Compliant | Corrosion Resistant | by Wurth
The M4 Countersunk Slot Head Bolt is crafted from stainless steel A2, ensuring exceptional corrosion resistance and durability. With a flush-fitting countersunk head and compliance with DIN 963 standards, this bolt is perfect for general fastening applications in machinery and construction. Ideal for environments requiring reliable, corrosion-resistant fasteners, it guarantees integrity and performance in every installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4 Countersunk Slot Head Bolt | Stainless Steel A2 | DIN 963 Compliant | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 286430
Alternatively Known As: M4 Countersunk Slot Head Bolt, Stainless Steel Metric Bolt, DIN 963 Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 30 mm
- Head diameter (dk): 7.5 mm
- Head height (k1): 2.2 mm
- Standards: DIN 963
- Material: Stainless steel A2
- Property class: 70
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Slot
- Internal drive: Slot
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.2mm x 30mm x 7.5mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Countersunk head with slot drive for flush fitting
- Complies with DIN 963 standard
- RoHS-compliant
- Metric thread with 0.7 mm pitch
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening integrity.
Applications
- General fastening applications in machinery and equipment
- Construction and assembly requiring corrosion-resistant fasteners
- Use in environments where stainless steel properties are needed
Standards & Compliance
- AS/NZS 4762 – High-Strength Steel Fasteners
Environmental Benefits
- Stainless steel material is recyclable and durable, reducing waste
- RoHS compliance ensures no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M4 x 30mm Stainless Steel Countersunk Slot Head Bolt is available for immediate purchase, ideal for industrial, construction, and maintenance applications.
