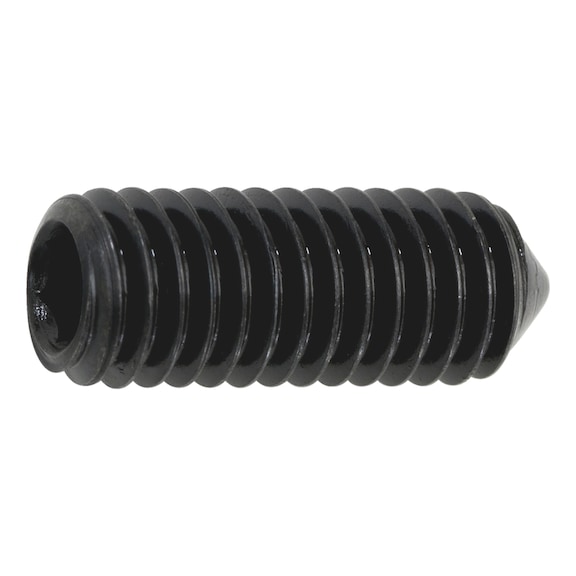

M4 Hex Socket Bolt | 6mm Length | HS2 Drive Type | Steel Material | by Wurth

BRAND: Wurth
SKU: 25646
$35.90 List price: $45.10
+ −
30 Days Return Delivery Options
The M4 Hex Socket Bolt is designed for reliable fastening in machinery and equipment, featuring a 6mm length and HS2 hexagon socket drive. Made from durable steel with a hardness of 45H, this bolt is perfect for automotive and industrial applications, ensuring compliance with RoHS standards for reduced hazardous substances.

Product Name/Title: M4 Hex Socket Bolt | 6mm Length | HS2 Drive Type | Steel Material | by Wurth

Brand: Wurth

SKU: 25646

Alternatively Known As: Hex Socket Bolt M4, M4 Hexagon Socket Screw, Metric Hex Bolt M4x6

Technical Specifications
  • Thread type x nominal diameter (d1): M4
  • Length (l1): 6 mm
  • Tip diameter (d2): 1 mm
  • Internal drive (s1): HS2
  • Angle of the tip: 90 Degree
  • Standards: ISO 4027
  • Material: Steel
  • Hardness category: 45H
  • Surface: Plain
  • Drive type: Hexagon socket
  • Shape of tip: Tip
  • RoHS-compliant: Yes
  • Dimensions (H x L x W): 6mm x 6mm x 4mm
  • Weight: 0.1 kg
Key Features
  • Thread type: M4
  • Length: 6 mm
  • Tip diameter: 1 mm
  • Internal drive: HS2 hexagon socket
  • Tip angle: 90 degrees
  • Material: Steel with 45H hardness
  • Plain surface finish
  • RoHS-compliant
Professional Installation Requirements
  • Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
  • General fastening applications in machinery and equipment
  • Assembly of metal components
  • Use in automotive and industrial sectors
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • RoHS-compliant ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

The Wurth M4 x 6mm Hexagon Socket Tip Bolt is available now for immediate purchase. Ideal for industrial, automotive, and general fastening applications.
