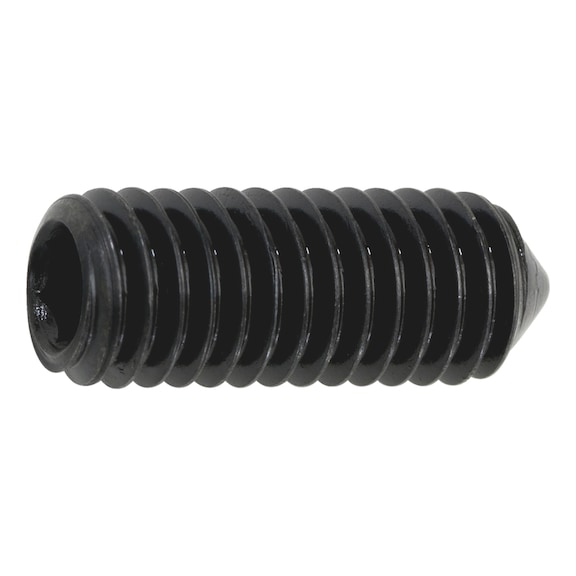

M4 Hex Socket Bolt | 8mm Length | Hexagon Socket Drive | 90 Degree Tip Angle | by Wurth
The M4 Hex Socket Bolt is designed for precision fastening in mechanical assemblies, featuring an 8mm length and a hexagon socket drive for easy installation. Made from durable steel with a hardness category of 45H, this bolt is ideal for industrial and construction applications, ensuring reliable performance and compliance with RoHS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4 Hex Socket Bolt | 8mm Length | Hexagon Socket Drive | 90 Degree Tip Angle | by Wurth
Brand: Wurth
SKU: 25648
Alternatively Known As: M4 Hex Socket Bolt, M4 Steel Bolt, Hexagon Socket Head Bolt M4
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 8 mm
- Tip diameter (d2): 1 mm
- Internal drive (s1): HS2
- Angle of the tip: 90 Degree
- Standards: ISO 4027
- Material: Steel
- Hardness category: 45H
- Surface: Plain
- Drive type: Hexagon socket
- Shape of tip: Tip
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8mm x 8mm x 4mm
- Weight: 0.1 kg
Key Features
- M4 thread type with 8mm length
- Hexagon socket internal drive (HS2)
- 90 degree tip angle for precise fastening
- Made from steel with hardness category 45H
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson recommended to ensure proper torque and fastening.
Applications
- Mechanical assemblies requiring M4 bolts
- General fastening in machinery and equipment
- Industrial and construction fastening applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M4 x 8mm Steel Hexagon Socket Tip Bolt is available for immediate purchase, ideal for industrial, mechanical, and construction fastening applications.
