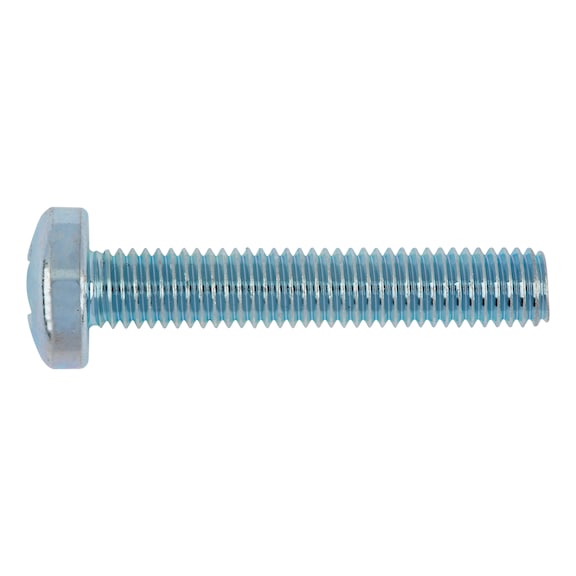

M4 Pan Head Screw | Zinc Plated Steel | DIN 7985 Compliant | Crosshead Drive | by Wurth
The M4 Pan Head Screw is crafted from zinc plated steel, ensuring corrosion resistance and durability. With a pan head design and crosshead drive, it simplifies installation for various applications, including machinery, automotive, and construction. This screw complies with DIN 7985 standards and is RoHS-compliant, making it a reliable choice for both metal and wood assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4 Pan Head Screw | Zinc Plated Steel | DIN 7985 Compliant | Crosshead Drive | by Wurth
Brand: Wurth
SKU: 46425
Alternatively Known As: M4 Pan Head Screw, Zinc Plated Metric Bolt, Crosshead Machine Screw
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 25 mm
- Head diameter (dk): 8 mm
- Head height (k1): 3.1 mm
- Standards: DIN 7985
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: Crosshead
- Internal drive: H2
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 3.1mm x 25mm x 8mm
- Weight: 0.1 kg
Key Features
- Steel material with zinc plating for corrosion resistance
- Pan head design with crosshead (Phillips) drive for easy installation
- Complies with DIN 7985 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- General fastening applications in machinery, automotive, and construction
- Suitable for use in metal and wood assemblies requiring metric thread bolts
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M4 x 25mm Zinc Plated Steel Pan Head Crosshead Bolt is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
