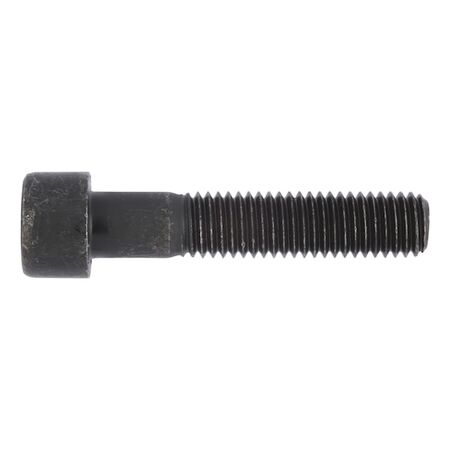

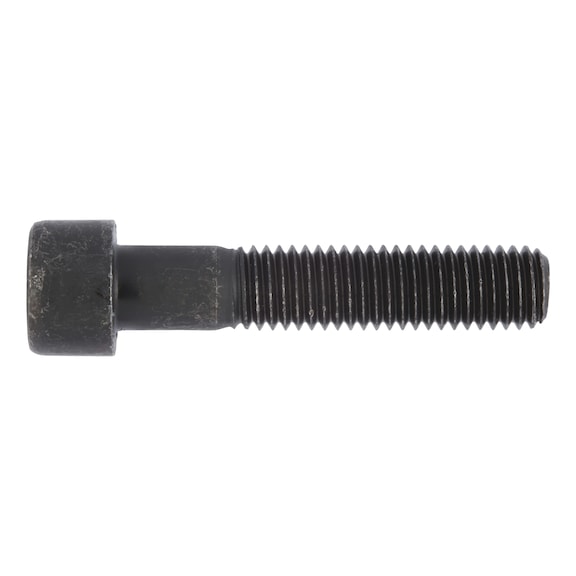

M4 Socket Head Cap Screw | High-Strength Steel | ISO 4762 Compliant | Plain Finish | by Wurth
The M4 Socket Head Cap Screw is crafted from high-strength steel with a property class of 12.9, making it ideal for mechanical assemblies and industrial applications. Featuring a hexagon socket drive for secure fastening, this RoHS-compliant bolt ensures environmental safety while providing reliable performance in automotive and engineering projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4 Socket Head Cap Screw | High-Strength Steel | ISO 4762 Compliant | Plain Finish | by Wurth
Brand: Wurth
SKU: 83412
Alternatively Known As: Socket Head Cap Screw, Hex Socket Bolt, M4 Steel Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 12 mm
- Head diameter (dk): 7 mm
- Head height (k1): 4 mm
- Standards: ISO 4762
- Material: Steel
- Property class: 12.9
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive (s1): HS3
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 4mm x 12mm x 4mm
- Weight: 0.1 kg
Key Features
- Made from high-strength steel with property class 12.9
- Metric thread M4 with standard metric thread form
- Socket head with hexagon internal drive (HS3) for secure fastening
- Plain surface finish
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or engineer recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fasteners
- Industrial machinery and equipment
- Automotive and engineering applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth M4 x 12mm Socket Head Steel Bolt is available for immediate purchase, ideal for industrial, mechanical, and automotive fastening applications.
