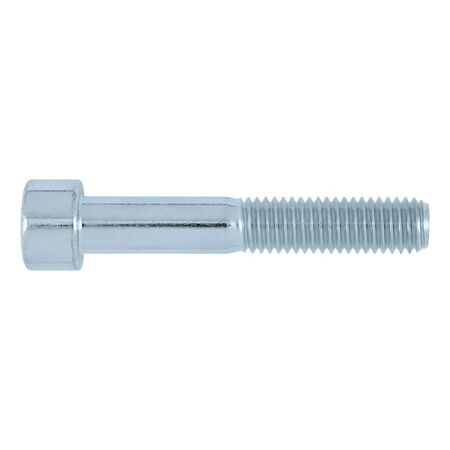

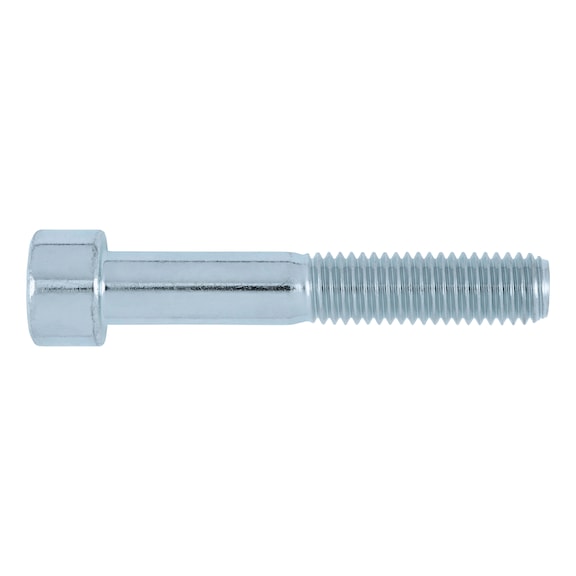

M4 Socket Head Cap Screw | Zinc Plated Steel | ISO 4762 Compliant | by Wurth
The M4 Socket Head Cap Screw is crafted from high-strength steel with a zinc plated surface for enhanced corrosion resistance. Ideal for general mechanical fastening, industrial machinery assembly, and automotive repairs, this bolt complies with ISO 4762 standards and is RoHS-compliant, ensuring environmental safety and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4 Socket Head Cap Screw | Zinc Plated Steel | ISO 4762 Compliant | by Wurth
Brand: Wurth
SKU: 84410
Alternatively Known As: Socket Head Cap Screw, Hex Socket Bolt, Metric Socket Head Bolt M4
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 10 mm
- Head diameter (dk): 7 mm
- Head height (k1): 4 mm
- Standards: ISO 4762
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive (s1): HS3
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 4mm x 10mm x 7mm
- Weight: 0.1 kg
Key Features
- Made from high-strength steel with property class 8.8
- Zinc plated surface for corrosion resistance
- Socket head with hexagon internal drive (HS3) for secure tightening
- Complies with ISO 4762 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- General mechanical fastening
- Industrial machinery assembly
- Automotive repairs and assembly
- Construction and structural applications
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth M4 x 10mm Zinc Plated Steel Socket Head Bolt is available for immediate purchase, ideal for mechanical, industrial, and construction fastening applications.
