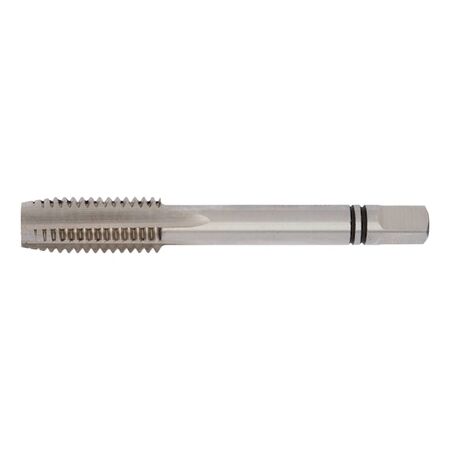

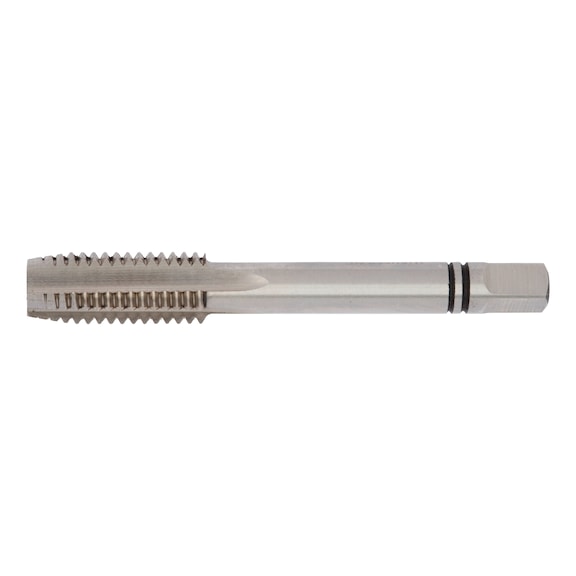

M4 Thread Tap | HSS Material | Trim Cut Form D | DIN 352 Compliant | by Wurth
The M4 Thread Tap is designed for precise thread cutting in machining applications, featuring high-speed steel (HSS) construction for durability. Ideal for producing metric ISO standard threads in both through holes and blind holes, this second tap ensures compliance with DIN 352 standards, making it perfect for professionals in metalworking and machining.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type description: Second tap
- Standards: DIN 352
- Thread type x nominal diameter: M4
- Pitch: 0.7 mm
- Length: 45 mm
- Thread length (metric thread): 13 mm
- Shank diameter: 4.5 mm
- Size of square: 3.4 mm
- Core hole diameter: 3.30 mm
- Material: HSS
- Thread type: Metric thread
- Dimensions (H x L x W): 45mm x 45mm x 4.5mm
- Weight: 0.1 kg
Key Features
- Trim cut form D for precise thread cutting
- Complies with DIN 13 for metric ISO standard threads
- Suitable for through holes and blind holes
- High-speed steel (HSS) material for durability
Professional Installation Requirements
- Use by trained machinists or professionals familiar with thread cutting tools is recommended for safety and precision.
Applications
- Machining: Producing metric ISO standard threads by hand in through holes and blind holes
- Suitable for steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces the need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth 64024 Second Tap M4 is available for immediate purchase, ideal for machining and metalworking applications.
