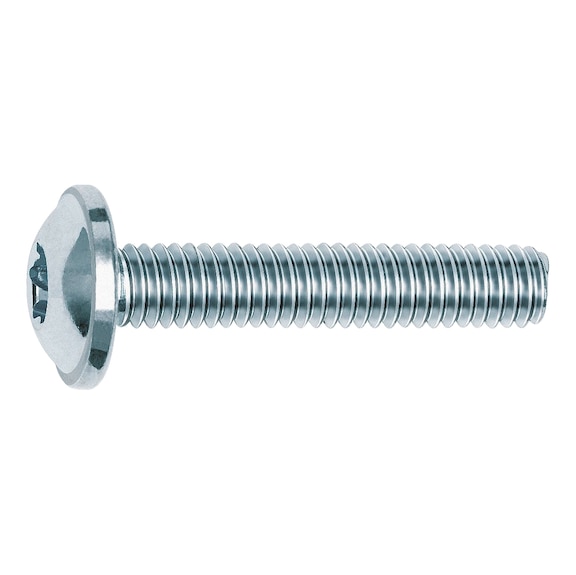

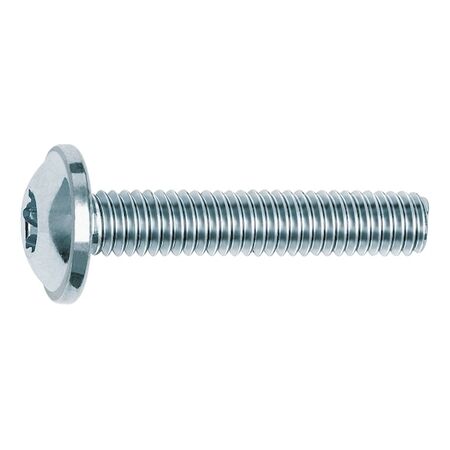

M4 Zinc Plated Furniture Handle Screw | AW20 Drive | Full Thread Design | Corrosion Resistant | by Wurth
The M4 Zinc Plated Furniture Handle Screw is designed for optimal fit and alignment in furniture assembly. Featuring a full thread design and AW20 internal drive, this screw ensures high force transfer capability and precise installation. Ideal for both residential and commercial cabinetry, it offers corrosion resistance with its zinc plating, extending product life and reducing waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4 Zinc Plated Furniture Handle Screw | AW20 Drive | Full Thread Design | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 27534012
Alternatively Known As: Furniture handle screw M4, Zinc plated furniture screw, AW20 drive screw, Furniture fitting screw
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 12 mm
- Head diameter (dk): 9.5 mm
- Nominal diameter: 4 mm
- Internal drive: AW20
- Material: Steel
- Surface: Zinc plated
- Dimensions (H x L x W): 12mm x 12mm x 9.5mm
- Weight: 0.1 kg
Key Features
- Full thread M4 for good fit and optimal centring
- No axial eccentricity ensuring precise alignment
- High force transfer capability
- Longer bit service life due to AW drive
- Galvanised steel with blue passivation for corrosion resistance
- 9.5mm large flat head with AW20 internal drive
Professional Installation Requirements
- Installation by a professional or skilled tradesperson recommended to ensure proper fitting and torque.
Applications
- Attaching furniture handles with M4 connecting threads
- Furniture fittings in residential and commercial cabinetry
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth M4 Zinc Plated Furniture Handle Screw with AW20 Drive is available now for immediate purchase. Ideal for furniture assembly and fittings in residential and commercial applications.
