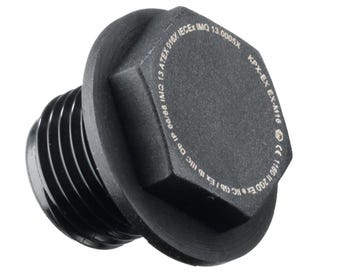

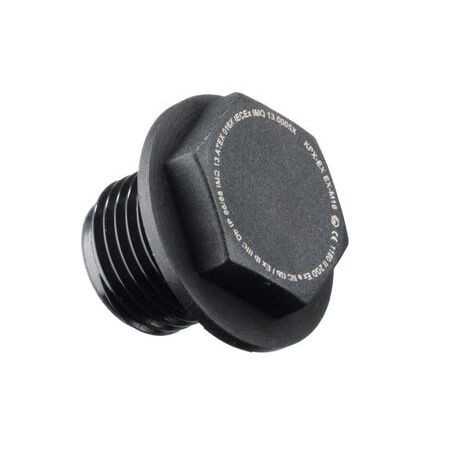

M40 EEXE Stopping Plug | IP66 to IP68 | Durable Nylon | Explosion Proof by Cabac
The Cabac M40 EEXE Nylon Stopping Plug provides a reliable sealing solution for hazardous and explosive environments, rated IP66-IP68 and certified to EN/IEC standards for safety and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40 EEXE STOPPING PLUG WITH SEALING
Brand: Cabac
SKU: EX-M40
Alternatively Known As: Nylon Stopping Plug M40, Ex e Stopping Plug, Cable Gland Stopping Plug, Explosion Proof Stopping Plug
Technical Specifications
- Material: Nylon
- Operating Temperature Range: -40ºC to +80ºC
- Ingress Protection: IP66 to IP68 (5 Bar, 30 minutes)
- Thread Type: Metric (M12, M16, M20, M25, M32, M40, M50, M63)
- Certifications: EN/IEC 60079-0, 60079-7, 60079-31
- Certification Marks: Ex e IIC Gb, Ex tb IIIC Db
- Certification Bodies: EC TYPE Examination IMQ 13ATEX016X, IECEx IMQ 13.0005X
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.05 kg
Key Features
- Made from durable nylon material
- Operating temperature range from -40ºC to +80ºC
- Ingress protection rated IP66 to IP68 (5 Bar, 30 minutes)
- Metric thread sizes available from M12 to M63
- Supplied with a flat washer to ensure IP protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hazardous area equipment and compliance standards.
Applications
- Use in hazardous and explosive environments including Zones 1, 2, 21, and 22
- Suitable for Ex e applications requiring reliable sealing
- Cable and wire management in industrial and explosive atmospheres
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nylon construction reduces need for frequent replacements
- High ingress protection minimizes environmental contamination risks
Warranty Information
Warranty terms available upon request from manufacturer.
Available Now
The Cabac M40 EEXE Nylon Stopping Plug is available for immediate purchase, ideal for use in hazardous and explosive industrial environments requiring certified sealing solutions.
