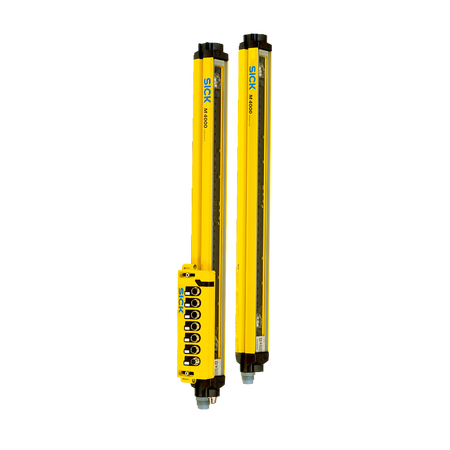

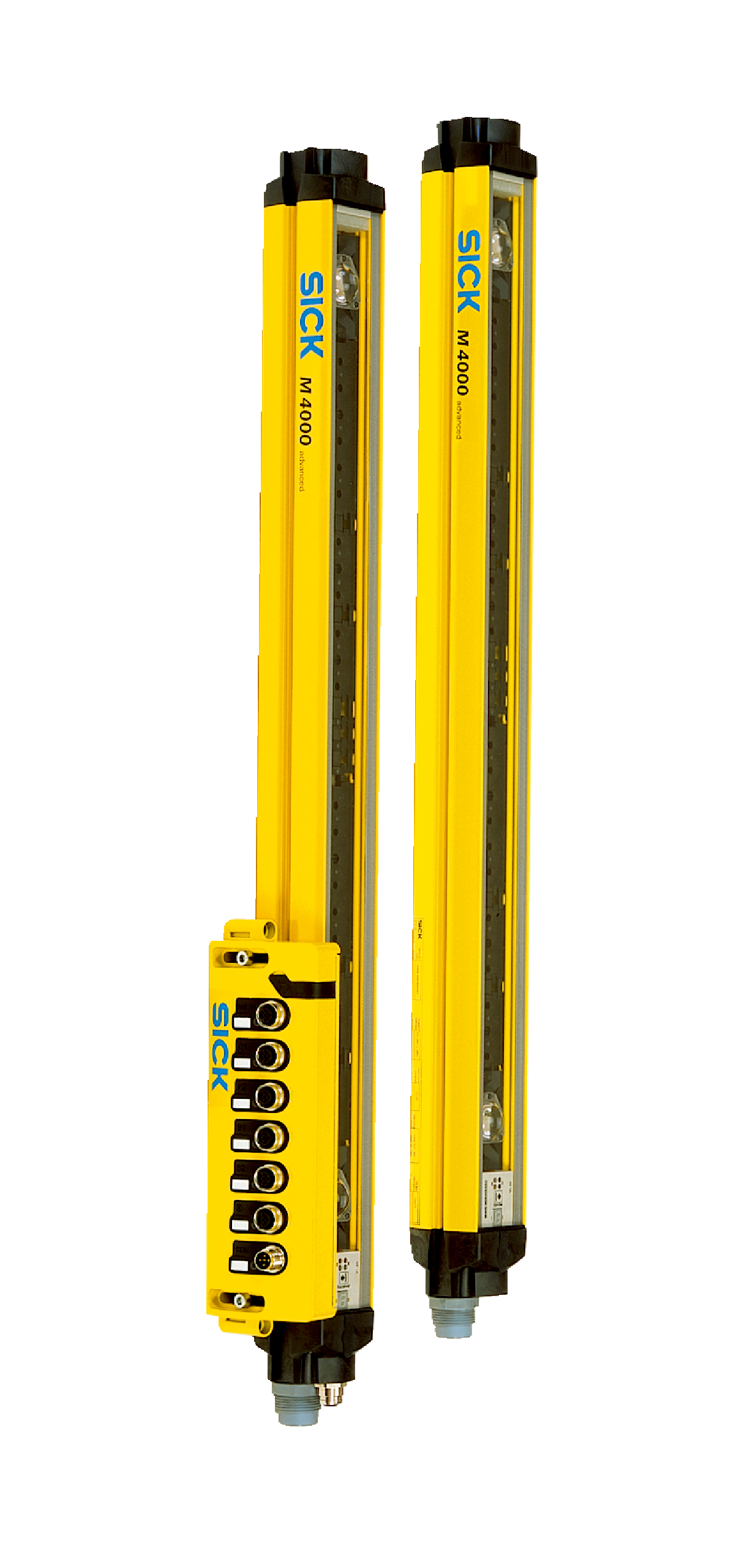

M40E-025013RB0 | Safety light-beam sensors
The SICK M40E-025013RB0 is a high-performance safety light-beam sensor designed for industrial safety applications, offering configurable scanning ranges, advanced muting functions, and robust construction for reliable machine guarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40E-025013RB0 | Safety light-beam sensors
Brand: SICK
SKU: 1200058
Alternatively Known As: Safety light curtain sensor, Safety light beam sensor, Industrial safety sensor, M40E safety sensor
Technical Specifications
- Functional principle: Sender/receiver
- System part: Receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 10 ms
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Output devices: 2 PNP semiconductors, short-circuit protected
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Material: Aluminum alloy housing, polycarbonate front screen
- Laser class: 2 (IEC 60825-1)
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.2 kg
Key Features
- Type 4 safety light-beam sensor with SIL 3 and PL e safety integrity
- Configurable scanning range from 0.5 m to 70 m
- Dual beam with 500 mm beam separation
- Optical synchronization and integrated laser alignment aid
- Flexible 4-signal muting for differentiation between man and material
- Short-circuit protected, cross-circuit monitored PNP output signal switching devices
- LED and 7-segment display for status indication
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for harsh environments
- Wide operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable materials reduce replacement frequency and waste
- Long operational life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK M40E-025013RB0 Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and machine guarding applications.
