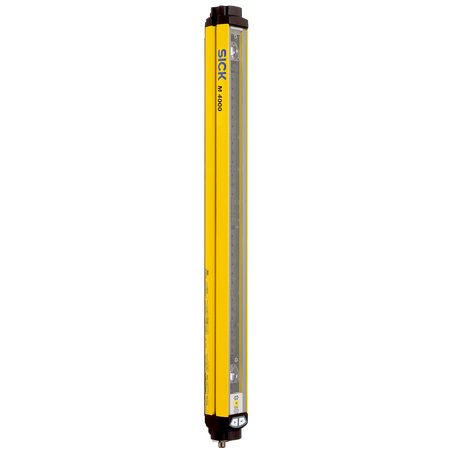

M40E-025030RR0 | Safety light-beam sensors
The SICK M40E-025030RR0 is a high-performance safety light-beam sensor designed for industrial safety applications, offering configurable scanning ranges, robust construction, and advanced safety features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40E-025030RR0 | Safety light-beam sensors
Brand: SICK
SKU: 1200038
Alternatively Known As: Safety light curtain sensor, Safety light beam sensor, Industrial safety sensor, M40E safety sensor
Technical Specifications
- Functional principle: Sender/receiver
- System part: Receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 10 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Output devices: 2 PNP semiconductors, short-circuit protected
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Material: Aluminum alloy housing, polycarbonate front screen
- Light source: Visible red LED, wavelength 630 nm to 680 nm
- Laser class: 2 (IEC 60825-1)
- Dimensions (H x L x W): 55mm x 150mm x 52mm
- Weight: 1.2 kg
Key Features
- Type 4 safety light-beam sensor with SIL 3 and PL e safety ratings
- Configurable scanning range from 0.5 m to 70 m
- Dual beam with 500 mm beam separation
- Optical synchronization and integrated laser alignment aid
- LED and 7-segment display for easy configuration and status indication
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for harsh environments
- Short response time of 10 ms
- 2 PNP semiconductor output signal switching devices with short-circuit protection
Professional Installation Requirements
- Installation by a qualified professional is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
- Complies with RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M40E-025030RR0 Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
