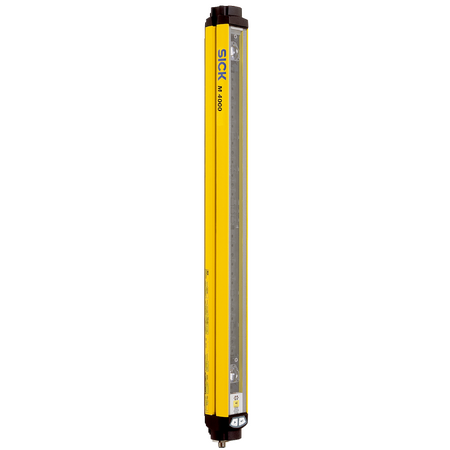

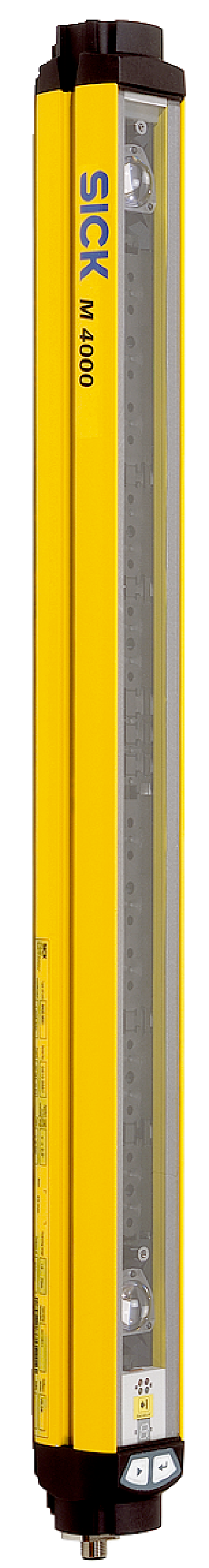

M40E-034512AU0 | Safety light-beam sensors
The SICK M40E-034512AU0 is a high-performance safety light-beam sensor designed for industrial safety applications, featuring configurable scanning ranges, robust construction, and advanced safety certifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40E-034512AU0 | Safety light-beam sensors
Brand: SICK
SKU: 1202966
Alternatively Known As: Safety light beam sensor, Safety light curtain sensor, Industrial safety sensor, M40E safety sensor
Technical Specifications
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 3
- Beam separation: 450 mm
- Response time: 10 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Power consumption: ≤ 0.2 A at 26 V DC to 31.6 V DC
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Light source: Visible red LED, wavelength 630 nm to 680 nm
- Laser class: 2 (IEC 60825-1)
- Dimensions (H x L x W): 55mm x 150mm x 52mm
- Weight: 1.5 kg
Key Features
- Actuator Sensor Interface replaces the system connection
- Sender/receiver functional principle
- Configurable scanning range from 0.5 m to 70 m
- Three beams with 450 mm beam separation
- Response time of 10 ms
- Optical synchronization and integrated laser alignment aid
- Type 4 safety (IEC 61496-1) with SIL 3 and PL e performance levels
- Male connector M12, 4-pin system connection
- LED and 7-segment display for configuration and status
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems to ensure compliance with safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control and perimeter protection
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK M40E-034512AU0 Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
