M40E-034523RB0 | Safety light-beam sensors

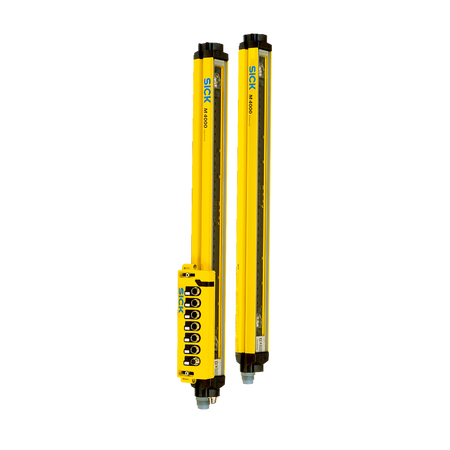

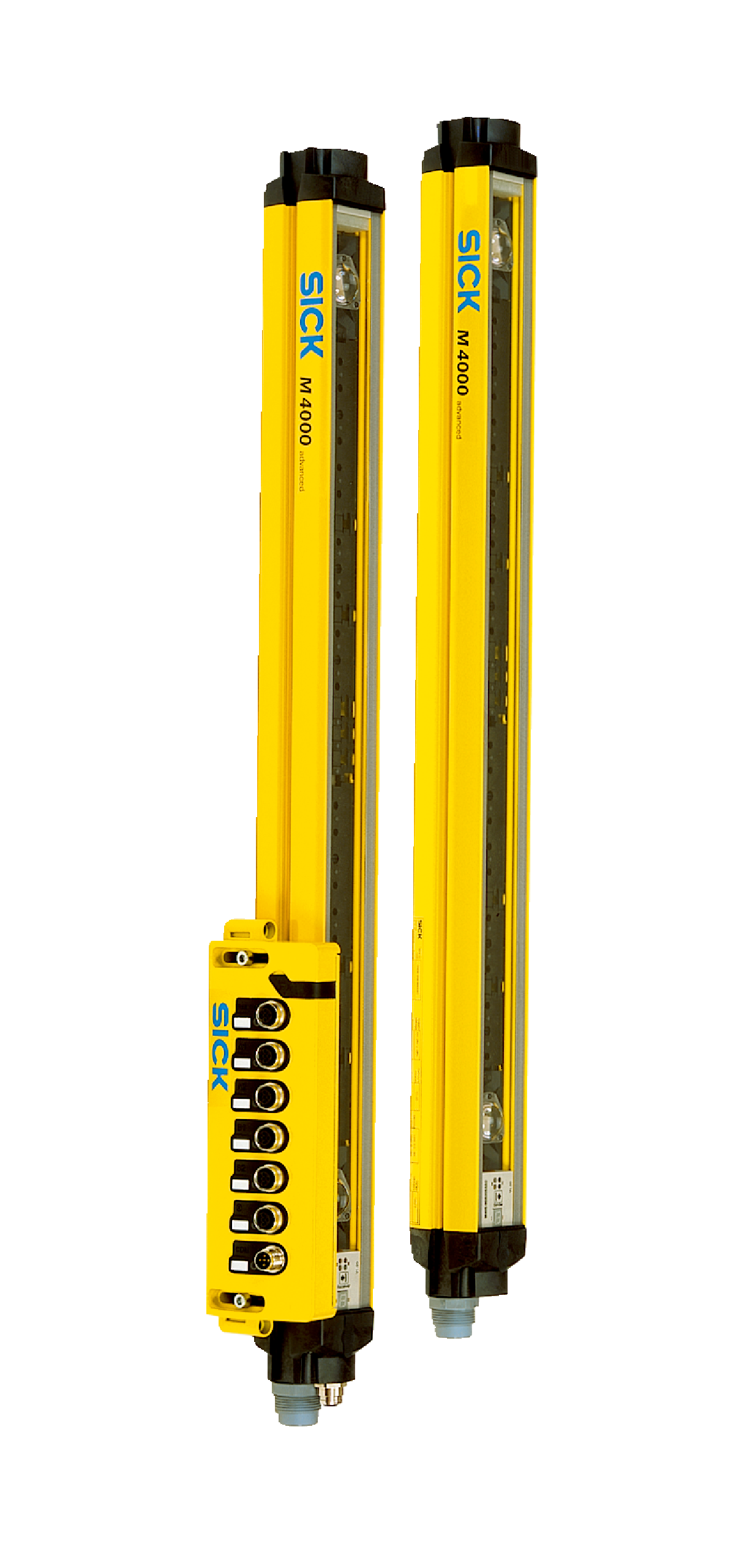

The SICK M40E-034523RB0 is a Type 4 safety light-beam sensor receiver designed for industrial safety applications, offering configurable scanning ranges, high safety integrity, and robust construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40E-034523RB0 | Safety light-beam sensors
Brand: SICK
SKU: 1200081
Alternatively Known As: Safety light beam sensor receiver, Safety light curtain receiver, Industrial safety sensor, Optical safety sensor
Technical Specifications
- Functional principle: Sender/receiver
- System part: Receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 3
- Beam separation: 450 mm
- Response time: 10 ms
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Beam coding, Restart interlock, External device monitoring, Sender test, Configurable scanning range, Configurable diagnostic output, Safe SICK device communication via EFI
- System connection: Hirschmann male connector M26, 12-pin
- Permitted cable length: 50 m
- Configuration connection: Female connector M8, 4-pin
- Configuration method: PC with CDS software
- Display elements: LEDs and 7-segment display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10%
- Power consumption: ≤ 0.6 A
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 500 mA
- Housing material: Aluminum alloy ALMGSI 0.5, powder coated
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light-beam sensor receiver with 3 beams and 450 mm beam separation
- Configurable scanning range from 0.5 m to 70 m
- Optical synchronization and integrated LED end cap for status indication
- Flexible, configurable 4-signal muting for differentiation between man and material
- High safety integrity level SIL 3 and performance level PL e
- Short response time of 10 ms
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for protection against dust and water
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and optimal device performance.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption of ≤ 0.6 A contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK M40E-034523RB0 Safety Light-Beam Sensor Receiver is available for immediate purchase, ideal for industrial safety and automation applications.
