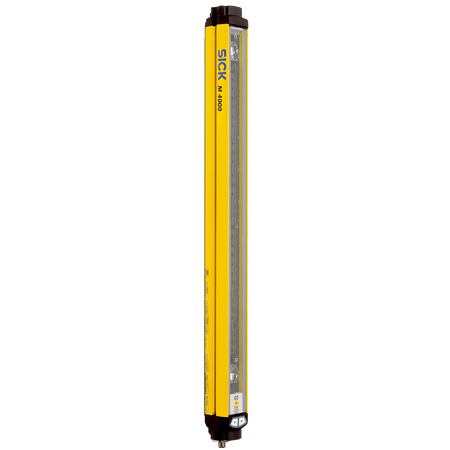

M40E-042200RR0 | Safety light-beam sensors
The SICK M40E-042200RR0 is a Type 4 safety light-beam sensor receiver designed for industrial safety applications, offering configurable scanning ranges up to 70 meters and high safety integrity with SIL 3 certification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40E-042200RR0 | Safety light-beam sensors
Brand: SICK
SKU: 1200022
Alternatively Known As: Safety light beam sensor receiver, Safety light curtain receiver, Industrial safety sensor, Optical safety sensor
Technical Specifications
- Functional principle: Sender/receiver
- Number of beams: 4
- Beam separation: 220 mm
- Response time: 10 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Output devices: 2 PNP semiconductors, short-circuit protected
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light-beam sensor receiver with 4 beams and 220 mm beam separation
- Configurable scanning range from 0.5 m to 70 m
- Optical synchronization with 10 ms response time
- Safety integrity level SIL 3 and Performance level PL e
- Short-circuit protected PNP semiconductor output signal switching devices
- LED and 7-segment display for configuration and status indication
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK M40E-042200RR0 Safety Light-Beam Sensor Receiver is available for immediate purchase, ideal for industrial safety and automation applications.
