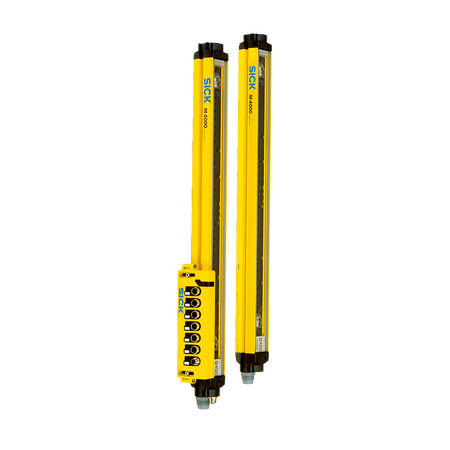

M40E-043003RB0 | Safety light-beam sensors
The SICK M40E-043003RB0 is a high-performance safety light-beam sensor receiver designed for industrial safety applications, offering configurable scanning ranges, fast response times, and advanced safety features compliant with international standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40E-043003RB0 | Safety light-beam sensors
Brand: SICK
SKU: 1200100
Alternatively Known As: Safety light beam sensor receiver, M40E safety sensor, SICK light curtain receiver, industrial safety sensor
Technical Specifications
- Functional principle: Sender/receiver
- System part: Receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 10 ms
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 500 mA
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Housing material: Aluminum alloy ALMGSI 0.5, powder coated
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (EN 60068-2-6)
- Shock resistance: 10 g, 16 ms (EN 60068-2-27)
- Wavelength: 850 nm
- System connection: Hirschmann male connector M26, 12-pin
- Permitted cable length: 50 m
- Configuration connection: Female connector M8, 4-pin
- Configuration method: PC with CDS (Configuration and Diagnostic Software)
- Display elements: LEDs and 7-segment display
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.2 kg
Key Features
- Sender/receiver functional principle
- Configurable scanning range from 0.5 m to 70 m
- Four beams with 300 mm separation
- Response time of 10 ms
- Optical synchronization
- Type 4 safety (IEC 61496-1)
- SIL 3 safety integrity level (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Beam coding and restart interlock
- External device monitoring (EDM)
- Configurable application diagnostic output
- Safe SICK device communication via EFI
- Flexible, configurable 4-signal muting for differentiation between man and material
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards to ensure proper function and certification.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing with powder coating for long service life
- Low power consumption with efficient electronics
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK M40E-043003RB0 Safety Light-Beam Sensor Receiver is available for immediate purchase, ideal for industrial safety and automation applications.
