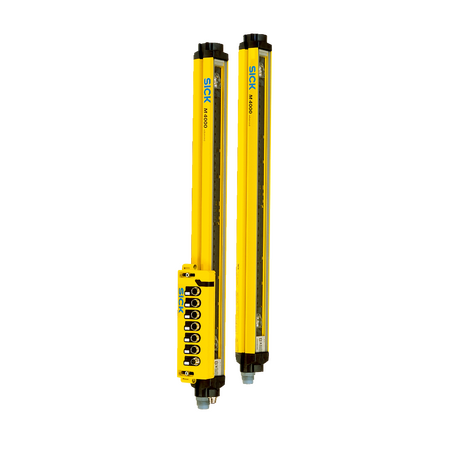

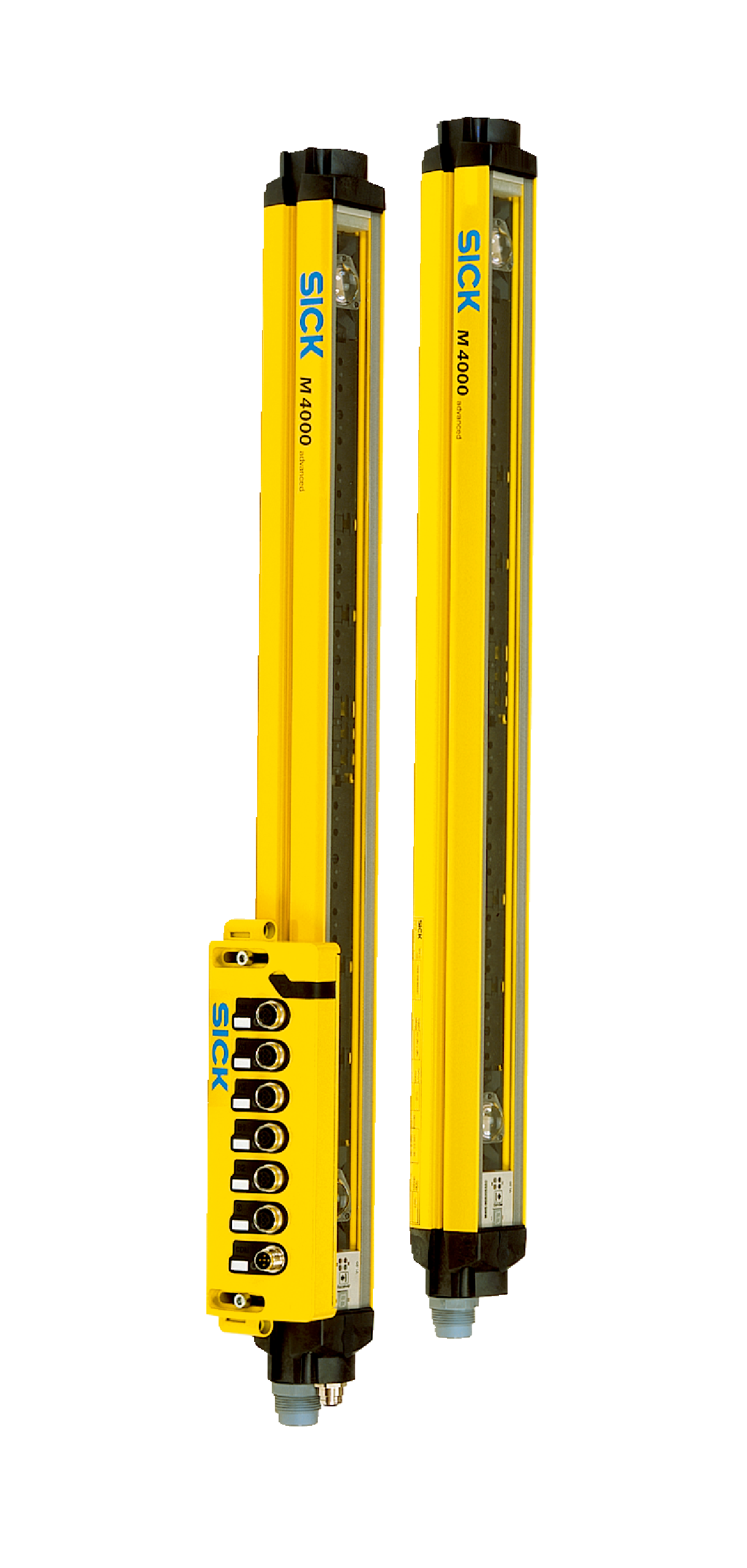

M40E-043023RB0 | Safety light-beam sensors
The SICK M40E-043023RB0 safety light-beam sensor is a high-performance Type 4 safety device designed for industrial safety applications, offering configurable scanning ranges, fast response times, and advanced muting functions to ensure reliable machine safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40E-043023RB0 | Safety light-beam sensors
Brand: SICK
SKU: 1200109
Alternatively Known As: Safety light curtain sensor, Safety light beam sensor, Industrial safety sensor, Machine safety sensor
Technical Specifications
- Functional principle: Sender/receiver
- System part: Receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 10 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD off
- Output devices: 2 PNP semiconductors, short-circuit protected
- Power supply: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Material: Aluminum alloy housing, polycarbonate front screen
- Dimensions (H x L x W): 55mm x 150mm x 52mm
- Weight: 1.5 kg
Key Features
- Sender/receiver functional principle
- Configurable scanning range from 0.5 m to 70 m
- Four beams with 300 mm beam separation
- Response time of 10 ms
- Optical synchronization
- End cap with integrated LED for status indication
- Type 4 safety device compliant with IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Flexible, configurable 4-signal muting for differentiation between man and material
- External device monitoring and sender test functions
- Hirschmann male connector M26, 12-pin system connection
- PC configuration via CDS software
- Protection class III (IEC 61140)
- Power supply 24 V DC with low residual ripple
- Short-circuit protected, cross-circuit monitored PNP output switching devices
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial safety monitoring
- Machine safeguarding
- Access control in hazardous areas
- Automation systems requiring presence detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing with powder coating for extended product life
- Low power consumption reduces energy usage
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK M40E-043023RB0 safety light-beam sensor is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
