M40E-082220RT0 | Safety light-beam sensors

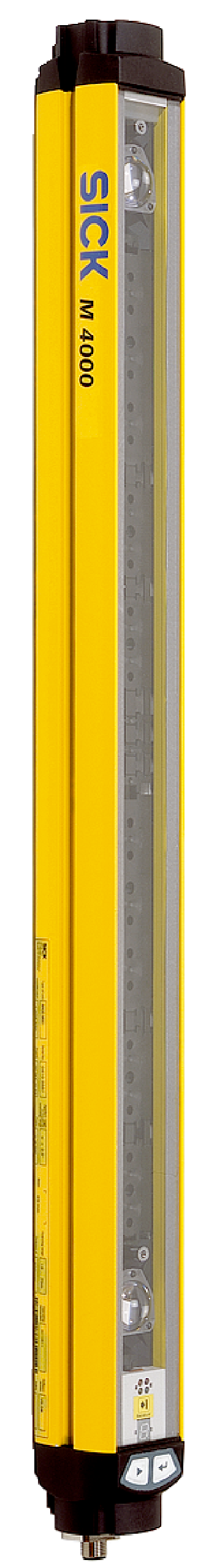

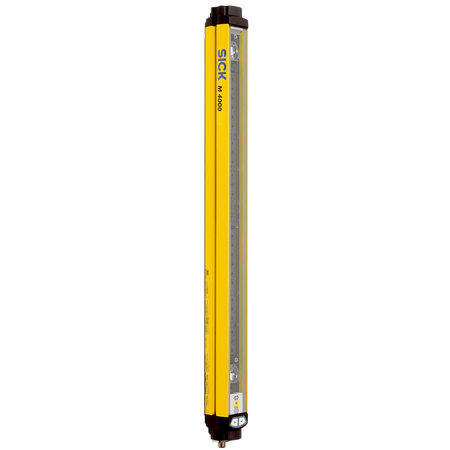

The SICK M40E-082220RT0 is a high-performance Type 4 safety light-beam sensor receiver designed for industrial safety applications, offering configurable scanning ranges, fast response, and robust construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40E-082220RT0 | Safety light-beam sensors
Brand: SICK
SKU: 1204326
Alternatively Known As: Safety light curtain receiver, Safety light beam sensor, Industrial safety sensor, M40E safety sensor
Technical Specifications
- Functional principle: Sender/receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 8
- Beam separation: 220 mm
- Response time: 11 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Housing material: Aluminum alloy ALMGSI 0.5, powder coated
- Front screen: Polycarbonate, scratch-resistant coating
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.2 kg
Key Features
- Type 4 safety light-beam sensor receiver with 8 beams and 220 mm beam separation
- Configurable scanning range from 0.5 m to 70 m
- Optical synchronization and beam coding for reliable operation
- Response time of 11 ms for fast detection
- Integrated LED end cap for status indication
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for protection against dust and water
- Supports external device monitoring (EDM) and restart interlock
- Male M12 8-pin system connection and female M12 5-pin reset connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable materials reduce replacement frequency and waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M40E-082220RT0 Safety Light-Beam Sensor Receiver is available for immediate purchase, ideal for industrial safety and automation applications.
