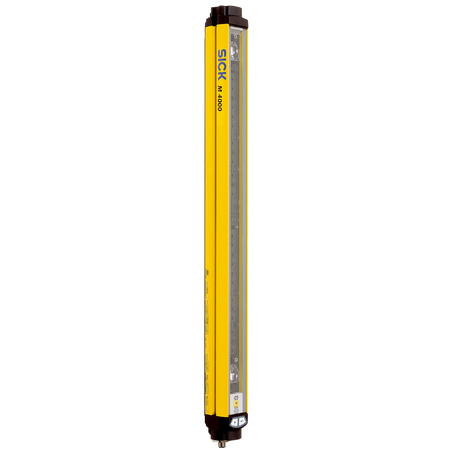

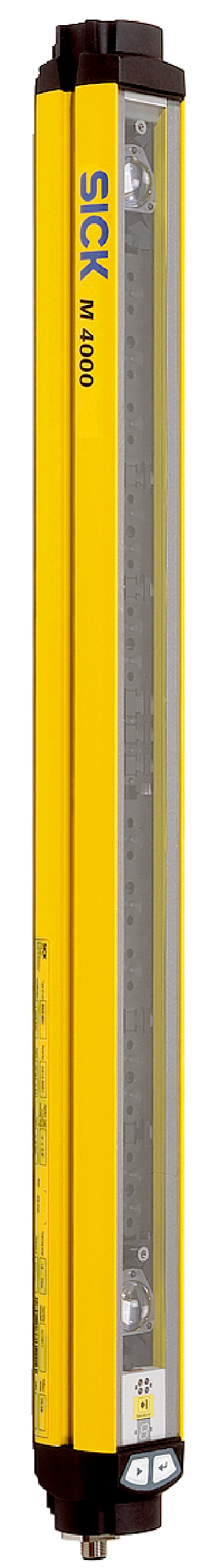

M40S-025012AU0 | Safety light-beam sensors
The SICK M40S-025012AU0 safety light-beam sensor offers high-performance, configurable scanning ranges and advanced safety features for industrial automation and machine guarding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40S-025012AU0 | Safety light-beam sensors
Brand: SICK
SKU: 1200090
Alternatively Known As: Safety light curtain sensor, Safety light beam sensor, Industrial safety sensor, M40S safety sensor
Technical Specifications
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 2
- Beam separation: 500 mm
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Supply voltage: 26 V DC to 31.6 V DC
- Power consumption: ≤ 0.2 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz (EN 60068-2-6)
- Shock resistance: 10 g, 16 ms (EN 60068-2-27)
- Housing material: Aluminum alloy ALMGSI 0.5, powder coated
- Front screen: Polycarbonate with scratch-resistant coating
- Wavelength: 850 nm
- System connection: Male connector M12, 4-pin
- Configuration method: Configuration buttons
- Display elements: LEDs and 7-segment display
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.5 kg
Key Features
- Actuator Sensor Interface replaces the system connection
- Sender/receiver functional principle
- Configurable scanning range from 0.5 m to 70 m
- Two beams with 500 mm beam separation
- Optical synchronization and integrated laser alignment aid
- Type 4 safety (IEC 61496-1) with SIL 3 and Category 4 compliance
- LED and 7-segment display for configuration and status
- Protection class III with power consumption ≤ 0.2 A
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation safety monitoring
- Machine guarding and perimeter protection
- Access control in hazardous areas
- Conveyor and production line safety
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan
- Compliance with RoHS reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK M40S-025012AU0 safety light-beam sensor is available for immediate purchase, ideal for industrial safety and automation applications.
