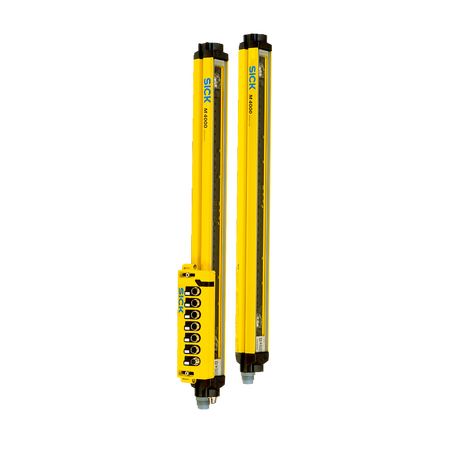

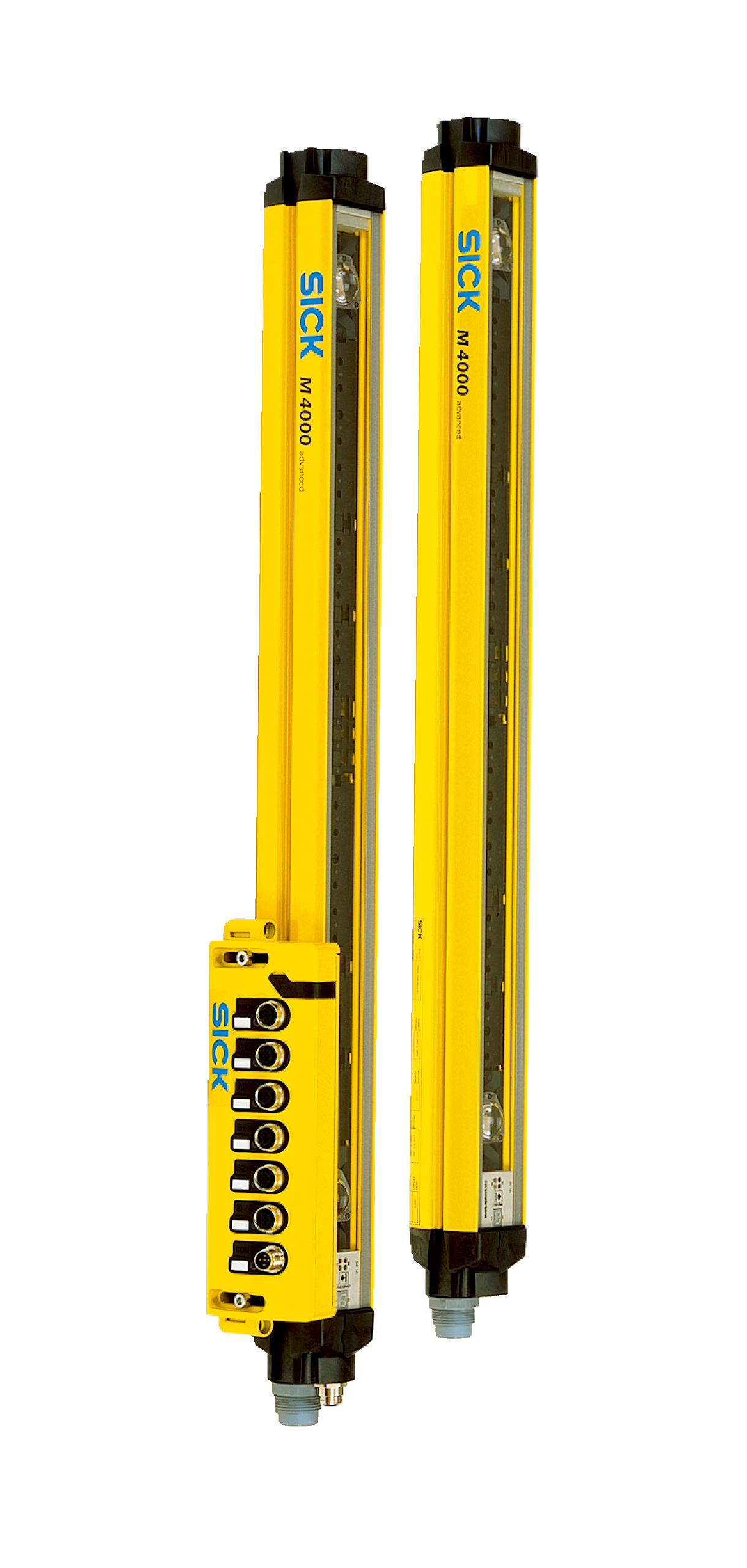

M40S-026013AA0 | Safety light-beam sensors
The SICK M40S-026013AA0 safety light-beam sensor offers reliable industrial safety with configurable scanning ranges, fast response, and advanced muting functions, housed in a robust IP65 rated enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40S-026013AA0 | Safety light-beam sensors
Brand: SICK
SKU: 1200078
Alternatively Known As: Safety light beam sensor, Safety light curtain sender, Industrial safety sensor, M40S safety sensor
Technical Specifications
- Functional principle: Sender/receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 2
- Beam separation: 600 mm
- Response time: 10 ms
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD is OFF
- Interfaces: Hirschmann male connector M26, 12-pin; configuration via female M8, 4-pin connector
- Configuration method: PC with CDS software
- Display: LEDs and 7-segment display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.2 A
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Material: Aluminum alloy ALMGSI 0.5, powder coated housing; polycarbonate front screen with scratch-resistant coating
- Wavelength: 850 nm
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.5 kg
Key Features
- Sender/receiver functional principle
- Configurable scanning range from 0.5 m to 70 m
- Two beams with 600 mm beam separation
- Response time of 10 ms
- Optical synchronization with integrated laser alignment aid
- Type 4 safety (IEC 61496-1) with SIL 3 and Category 4 safety ratings
- Flexible, configurable 4-signal muting for differentiation between man and material
- External device monitoring and sender test functions
- LED and 7-segment display for status indication
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper configuration using PC with CDS software.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation systems requiring presence detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption (≤ 0.2 A) minimizes energy use
- Long mission time of 20 years reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M40S-026013AA0 safety light-beam sensor is available for immediate purchase, ideal for industrial safety and automation applications.
