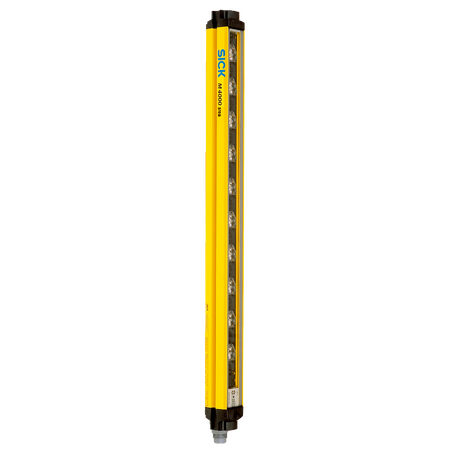

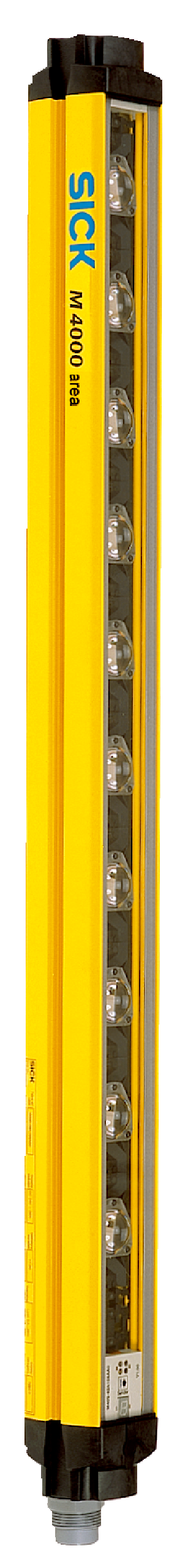

M40S-67A105AA0 | Safety light curtains
The SICK M40S-67A105AA0 Safety Light Curtains provide high-performance industrial safety guarding with a scanning range up to 90 meters, robust construction, and advanced safety features including SIL 3 and PL e compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40S-67A105AA0 | Safety light curtains
Brand: SICK
SKU: 1200604
Alternatively Known As: Safety light curtain, industrial safety sensor, machine guarding light curtain, safety barrier light curtain
Technical Specifications
- Resolution: 80 mm
- Scanning range: 0.5 m to 90 m
- Protective field height: 1,350 mm
- Response time: 17 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Power supply: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.2 A
- Protection class: III (IEC 61140)
- Housing material: Aluminum alloy ALMGSI 0.5 with powder coating
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (EN 60068-2-29)
- Wave length: 850 nm
- Dimensions (H x L x W): 1350mm x 55.5mm x 52mm
- Weight: 1.5 kg
Key Features
- Resolution of 80 mm for precise detection
- Scanning range from 0.5 m up to 90 m
- Protective field height of 1,350 mm
- Response time of 17 ms for fast safety reaction
- Optical synchronization for reliable operation
- Type 4 safety classification (IEC 61496-1)
- Safety Integrity Level SIL 3 (IEC 61508)
- Category 4 and Performance Level PL e (EN ISO 13849)
- Restart interlock and external device monitoring included
- Configurable scanning range and beam coding
- Safe SICK device communication via EFI protocol
- Robust aluminum alloy housing with powder coating
- Polycarbonate front screen with scratch-resistant coating
- IP65 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -30°C to +55°C
- Shock and vibration resistant for industrial environments
Professional Installation Requirements
- Installation must be performed by qualified personnel trained in safety light curtain systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial safety guarding for machinery
- Access protection in automated production lines
- Hazardous area monitoring in manufacturing
- Safety perimeter monitoring in robotics
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK M40S-67A105AA0 Safety Light Curtains are available for immediate purchase, ideal for industrial safety guarding and automated production line protection.
