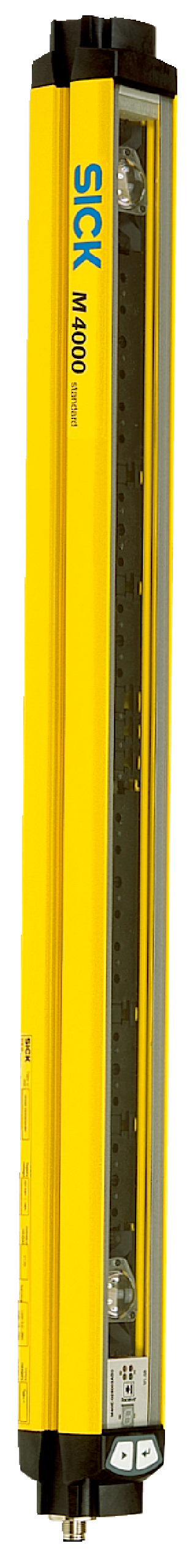

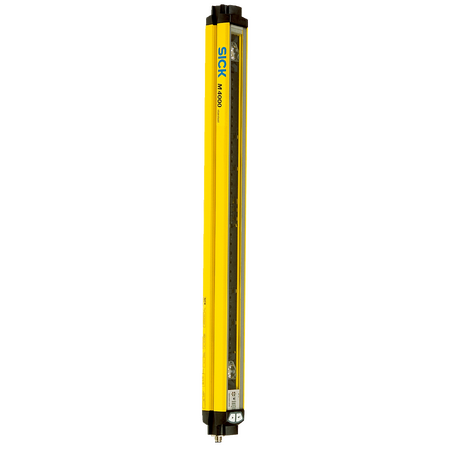

M40Z-025000TR0 | Safety light-beam sensors
The SICK M40Z-025000TR0 safety light-beam sensor offers reliable active/passive fibre-optic detection with high safety integrity for industrial machine guarding and perimeter protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40Z-025000TR0 | Safety light-beam sensors
Brand: SICK
SKU: 1200122
Alternatively Known As: Safety light beam sensor, Safety light curtain sensor, Fibre optic safety sensor, Industrial safety sensor
Technical Specifications
- Functional principle: Active/passive with fibre-optic deflection
- Scanning range: 0.5 m to 4.5 m
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 10 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Output devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Material: Aluminum alloy housing with powder coating, polycarbonate front screen
- Dimensions (H x L x W): 55mm x 55mm x 52mm
- Weight: 0.5 kg
Key Features
- Active/passive functional principle with fibre-optic deflection
- Scanning range from 0.5 m to 4.5 m with 2 beams and 500 mm beam separation
- Response time of 10 ms for fast detection
- Type 4 safety (IEC 61496-1) with SIL 3 (IEC 61508) and Category 4 (EN ISO 13849)
- Performance level PL e with very low probability of dangerous failure (PFHD 6.6 x 10^-9)
- Features beam coding, restart interlock, external device monitoring, and configurable diagnostic output
- LED and 7-segment display for configuration and status indication
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for protection against dust and water
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety sensor systems and compliance with relevant safety standards.
Applications
- Industrial automation safety systems
- Machine guarding and perimeter protection
- Hazardous area monitoring
- Factory and process safety installations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK M40Z-025000TR0 safety light-beam sensor is available for immediate purchase, ideal for industrial safety and machine guarding applications.
