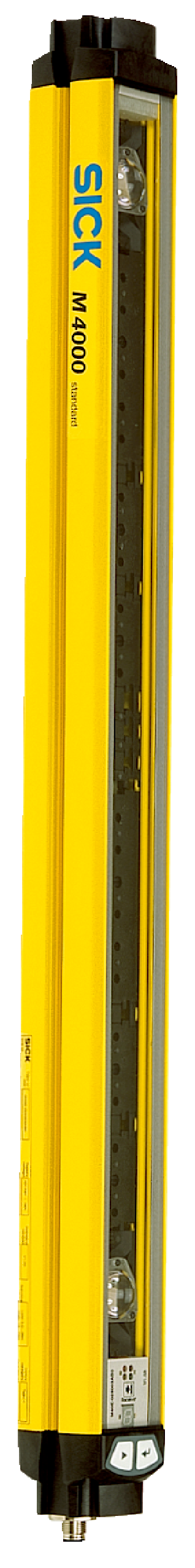

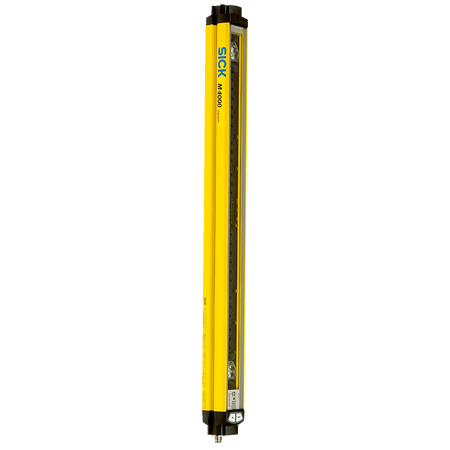

M40Z-025000TT0 | Safety light-beam sensors
The SICK M40Z-025000TT0 safety light-beam sensor offers reliable active/passive detection with fibre-optic deflection, designed for industrial safety applications with high safety integrity and robust construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40Z-025000TT0 | Safety light-beam sensors
Brand: SICK
SKU: 1200150
Alternatively Known As: Safety light beam sensor, Safety light curtain sensor, Industrial safety sensor, Presence detection sensor
Technical Specifications
- Functional principle: Active/passive
- System part: Active unit
- Type of diversion: Fibre-optic deflection
- Scanning range: 0.5 m to 4.5 m
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 10 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD OFF
- Output devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Switching voltage ON: 24 V DC (VS – 2.25 V DC ... VS)
- Switching voltage OFF: ≤ 2 V DC
- Current capacity per OSSD: ≤ 500 mA
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (EN 60068-2-6)
- Shock resistance: 10 g, 16 ms (EN 60068-2-27)
- Wave length: 850 nm
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.2 kg
Key Features
- Active/passive functional principle with fibre-optic deflection
- Scanning range from 0.5 m to 4.5 m with 2 beams and 500 mm beam separation
- Fast response time of 10 ms
- Type 4 safety (IEC 61496-1) with SIL 3 integrity level (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Features beam coding, restart interlock, external device monitoring, and configurable diagnostic output
- LED and 7-segment display for configuration and status indication
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards to ensure proper function and safety integrity.
Applications
- Industrial safety monitoring
- Machine safeguarding
- Access control in hazardous areas
- Automation systems requiring reliable presence detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient electronics
- Durable materials and robust design reduce replacement frequency and waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK M40Z-025000TT0 safety light-beam sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and safety compliance.
