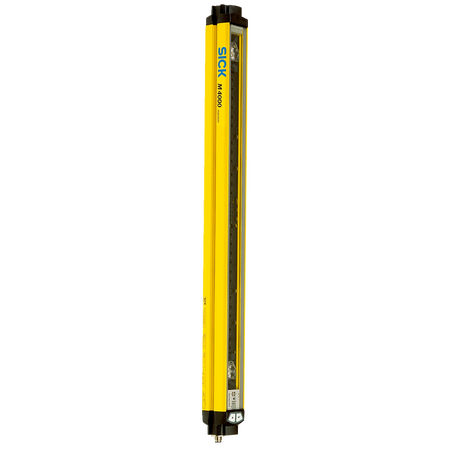

M40Z-025020RR0 | Safety light-beam sensors
The SICK M40Z-025020RR0 safety light-beam sensor offers reliable Type 4 safety performance with a scanning range up to 7.5 meters, ideal for industrial machine safeguarding and access control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40Z-025020RR0 | Safety light-beam sensors
Brand: SICK
SKU: 1200124
Alternatively Known As: Safety light curtain sensor, safety light beam sensor, industrial safety sensor, presence detection sensor
Technical Specifications
- Functional principle: Active/passive
- System part: Active unit
- Type of diversion: Mirror deflection
- Scanning range: 0.5 m to 7.5 m
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 10 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD OFF
- Output devices: 2 PNP semiconductors, short-circuit protected
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Housing material: Aluminum alloy ALMGSI 0.5, powder coated
- Front screen: Polycarbonate with scratch-resistant coating
- Wave length: 850 nm
- Dimensions (H x L x W): 55mm x 55mm x 52mm
- Weight: 1.2 kg
Key Features
- Active/passive functional principle with mirror deflection type of diversion
- Scanning range from 0.5 m to 7.5 m with 2 beams and 500 mm beam separation
- Response time of 10 ms with integrated LED end cap for status indication
- Type 4 safety (IEC 61496-1) with SIL 3 (IEC 61508) and Category 4 (EN ISO 13849) compliance
- Features beam coding, restart interlock, external device monitoring, and configurable diagnostic output
- Male M12 8-pin connector with up to 15 m cable length permitted
- Protection class III with 24 V DC supply voltage and short-circuit protected PNP output switching devices
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure suitable for harsh industrial environments
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial safety monitoring
- Machine safeguarding
- Access control in hazardous areas
- Automation systems requiring presence detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable materials and robust design reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK M40Z-025020RR0 safety light-beam sensor is available for immediate purchase, ideal for industrial safety and automation applications.
