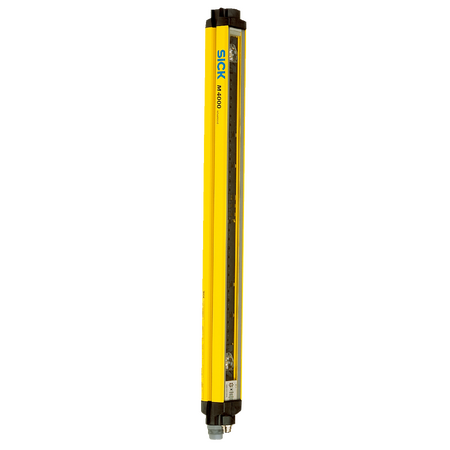

M40Z-025023TB0 | Safety light-beam sensors
The SICK M40Z-025023TB0 safety light-beam sensor offers high-performance active/passive sensing with fibre-optic deflection, designed for industrial safety applications with robust IP65 housing and advanced safety certifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40Z-025023TB0 | Safety light-beam sensors
Brand: SICK
SKU: 1200125
Alternatively Known As: Safety light beam sensor, Safety light curtain sensor, Industrial safety sensor, M40Z sensor
Technical Specifications
- Functional principle: Active/passive
- System part: Active unit
- Type of diversion: Fibre-optic deflection
- Scanning range: 0.5 m to 4.5 m
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 10 ms
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD OFF
- Beam coding, Restart interlock, External device monitoring, Configurable diagnostic output
- Safe SICK device communication via EFI
- Flexible 4-signal muting for man-material differentiation
- System connection: Hirschmann male connector M26, 12-pin
- Permitted cable length: 50 m
- Configuration connection: Female connector M8, 4-pin
- Configuration method: PC with CDS software
- Display elements: LEDs and 7-segment display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Housing: Aluminum alloy ALMGSI 0.5, powder coated
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.2 kg
Key Features
- Active/passive functional principle with fibre-optic deflection
- Scanning range from 0.5 m to 4.5 m with 2 beams and 500 mm beam separation
- Response time of 10 ms with optical synchronization
- Type 4 safety (IEC 61496-1) with SIL 3 (IEC 61508) and Category 4 (EN ISO 13849)
- Flexible, configurable 4-signal muting for differentiation between man and material
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- LED end cap and 7-segment display for diagnostics
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety sensor systems and compliant with occupational health and safety standards.
Applications
- Industrial safety monitoring
- Machine safeguarding
- Access control in hazardous areas
- Automation systems requiring presence detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient electronics
- Durable materials extend product lifespan reducing waste
- IP65 rating protects against dust and water ingress, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK M40Z-025023TB0 safety light-beam sensor is available for immediate purchase, ideal for industrial safety and automation applications.
