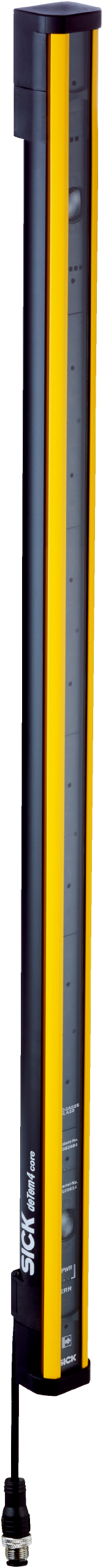

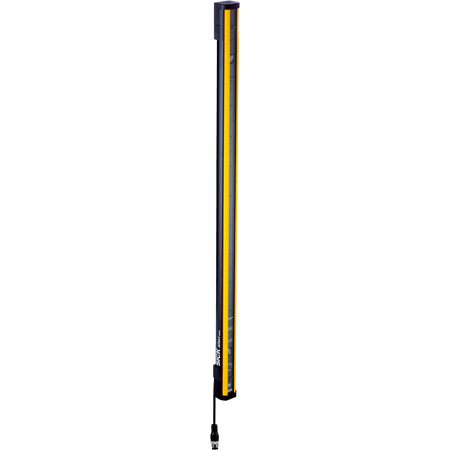

M4C-SA0250LA10 | Safety light-beam sensors
The SICK M4C-SA0250LA10 is a Type 4 safety light-beam sensor designed for normal industrial environments, offering high safety integrity with SIL 3 and Category 4 ratings, a scanning range up to 17 meters, and robust IP65/IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4C-SA0250LA10 | Safety light-beam sensors
Brand: SICK
SKU: 1082684
Alternatively Known As: Safety light beam sensor, industrial light curtain sender, optical safety sensor, M4C safety sensor
Technical Specifications
- Product version: deTem4 Core
- Functional principle: Sender/receiver
- System part: Sender
- Scanning range category: Low scanning range
- Scanning range: 17 m
- Dimension of the light path: Minimum 0.5 m to 15 m, Typical 0.5 m to 17 m
- Number of beams: 2
- Beam separation: 500 mm
- Synchronization: Optical synchronization
- System connection: Plug, M12, 5-pin
- Flexi Loop compatible M12 male connector: Yes
- Permitted cable length: 50 m
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10%
- Power consumption: ≤ 1.44 W (DC)
- Housing cross-section: 31 mm x 34 mm
- Housing material: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Weight: 560 g (± 50 g)
- Cable bend radius: Stationary > 12 x cable diameter, Flexible > 15 x cable diameter
- Enclosure rating: IP65 and IP67
- Ambient operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Type of light: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 34mm x 100mm x 31mm
- Weight: 0.56 kg
Key Features
- Type 4 safety light-beam sensor with SIL 3 and Category 4 safety ratings
- Scanning range up to 17 m with 2 beams and 500 mm beam separation
- Optical synchronization and Flexi Loop compatible M12 male connector
- LED display elements for status indication
- Robust aluminum extruded profile housing with polycarbonate scratch-resistant front screen
- Protection class III with IP65 and IP67 enclosure ratings
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance of 5 to 150 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light-beam detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.44 W reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M4C-SA0250LA10 Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety applications requiring high integrity light-beam detection.
