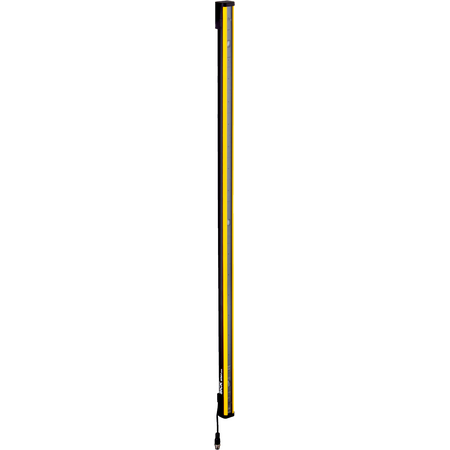

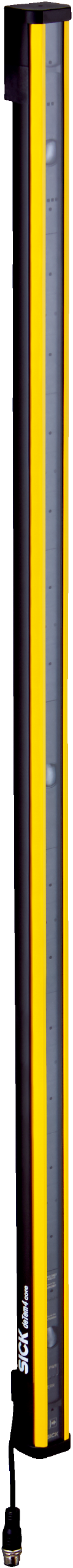

M4C-SA0340HA10 | Safety light-beam sensors
The SICK M4C-SA0340HA10 is a high-performance safety light-beam sensor designed for industrial environments, offering a scanning range up to 90 meters and advanced safety features including SIL 3 and PL e ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4C-SA0340HA10 | Safety light-beam sensors
Brand: SICK
SKU: 1082688
Alternatively Known As: Safety light beam sensor, industrial safety sensor, optical safety sensor, M4C safety sensor
Technical Specifications
- Product version: deTem4 Core
- Functional principle: Sender/receiver
- System part: Sender
- Scanning range: Typical 10 m to 90 m, Minimum 10 m to 70 m
- Number of beams: 3
- Beam separation: 400 mm
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin, Flexi Loop compatible
- Permitted cable length: 50 m
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10%
- Power consumption: ≤ 1.44 W
- Housing cross-section: 31 mm x 34 mm
- Material: Aluminum extruded profile housing, polycarbonate front screen with scratch-resistant coating
- Weight: 800 g (± 50 g)
- Cable bend radius: Stationary > 12 x cable diameter, Flexible > 15 x cable diameter
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 34mm x 150mm x 31mm
- Weight: 0.8 kg
Key Features
- Type 4 safety light-beam sensor with SIL 3 and PL e safety integrity levels
- Great scanning range up to 90 m with 3 beams and 400 mm beam separation
- Optical synchronization for reliable operation
- Robust aluminum extruded housing with polycarbonate scratch-resistant front screen
- IP65 and IP67 rated for protection against dust and water
- LED display elements for status indication
- Near-infrared (NIR), invisible light type
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety monitoring in normal industrial environments
- Machine safeguarding and perimeter protection
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 1.44 W)
- Durable materials and robust design reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M4C-SA0340HA10 Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
