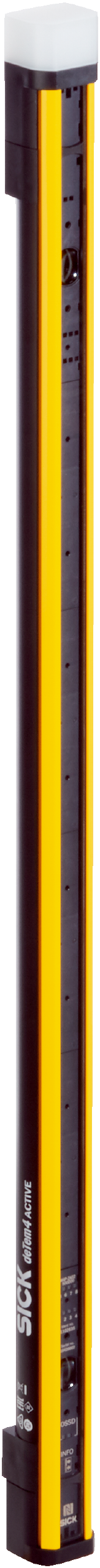

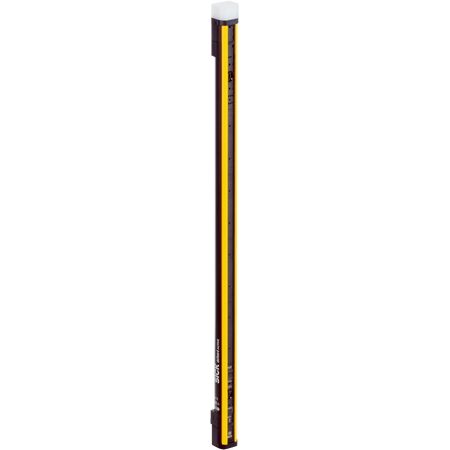

M4P-ZA02500D00 | Safety light-beam sensors
The SICK M4P-ZA02500D00 safety light-beam sensor deTem4 A/P is designed for industrial safety applications, offering high performance Type 4 protection with SIL 3 and PL e ratings, featuring a scanning range up to 8 meters and advanced muting and diagnostic functions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4P-ZA02500D00 | Safety light-beam sensors
Brand: SICK
SKU: 1102635
Alternatively Known As: Safety light beam sensor, industrial safety sensor, deTem4 A/P sensor, SICK safety sensor, Type 4 light curtain sensor
Technical Specifications
- Product version: deTem4 A/P
- Functional principle: Active/passive
- System part: Active unit
- Scanning range: 0.5 m to 8 m
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 20 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 6.6 x 10^-9
- Mission time: 20 years
- Safe state on fault: At least one OSSD off
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: M12 female connector, 5-pin (optional)
- Configuration: DIP switch on system plug
- Display: LEDs with alignment aid
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: 4 W
- Output devices: 2 PNP semiconductors, short-circuit protected
- Housing: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 34mm x 150mm x 31mm
- Weight: 0.565 kg
Key Features
- Active/passive functional principle with 2 beams and 500 mm beam separation
- Scanning range from 0.5 m to 8 m
- Type 4 safety sensor compliant with IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508) and Category 4 (ISO 13849-1)
- Performance level PL e (ISO 13849-1)
- Response time of 20 ms
- End cap with integrated LED for alignment and status indication
- Multiple function packages including muting, beam coding, restart interlock, and external device monitoring
- Interfaces include M12 connectors, DIP switch configuration, IO-Link, and NFC
- Robust aluminum extruded profile housing with polycarbonate scratch-resistant front screen
- Protection rating IP65 and IP67
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal sensor performance.
Applications
- Industrial safety monitoring in normal industrial environments
- Machine safeguarding and perimeter protection
- Use in environments requiring Type 4 safety sensors with SIL 3 and PL e performance levels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of 4 W reduces energy usage
- Long mission time of 20 years supports sustainable operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK M4P-ZA02500D00 safety light-beam sensor is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
