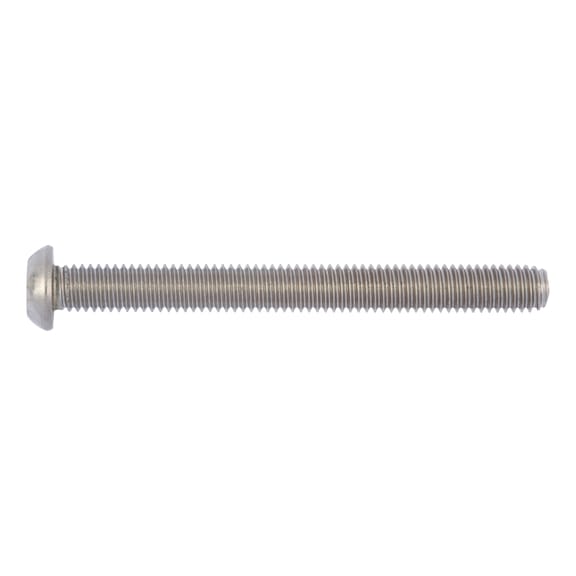

M5 Button Head Bolt | Stainless Steel A2 | TX25 Safety Pin Drive | Corrosion Resistant | by Wurth
The M5 Button Head Bolt is crafted from stainless steel A2, ensuring exceptional corrosion resistance and durability. With a low-profile button head design and TX25 safety pin drive, this bolt is perfect for general fastening applications in automotive, construction, and industrial settings. Its RoHS-compliant material guarantees safety and environmental responsibility, making it an ideal choice for reliable fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Button Head Bolt | Stainless Steel A2 | TX25 Safety Pin Drive | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 284516
Alternatively Known As: M5 Button Head Bolt, Stainless Steel Button Head Screw, TX25 Safety Pin Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 16 mm
- Head diameter (dk): 9.5 mm
- Head height (k1): 2.5 mm
- Standards: ISO 7380-1 similar, CS
- Material: Stainless steel A2
- Property class: 070
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Button head
- Drive type: TX with safety pin
- Internal drive: TX25+P
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Dimensions (H x L x W): 16mm x 16mm x 5mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Button head design for a smooth, low-profile finish
- TX25+P internal drive with safety pin for secure fastening
- Metric thread with 0.8 mm pitch
- RoHS-compliant material
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- General fastening applications in machinery and equipment
- Use in automotive, construction, and industrial assembly
- Suitable for corrosion-resistant fastening needs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel material is durable and recyclable, reducing environmental impact
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M5 x 16mm Stainless Steel Button Head Bolt is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
