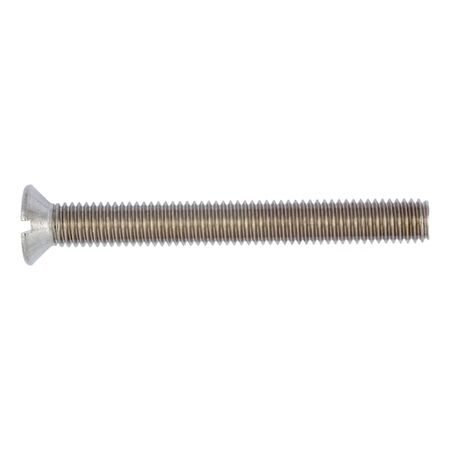

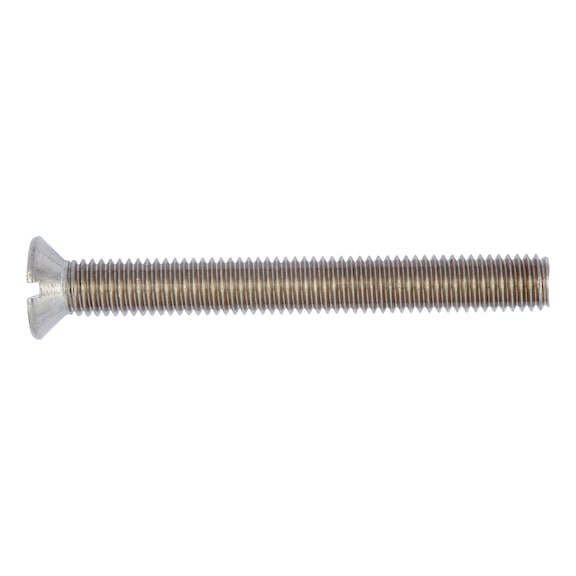

M5 Countersunk Bolt | Stainless Steel A2 | DIN 963 Compliant | Slot Drive | by Wurth
The M5 Countersunk Bolt is crafted from stainless steel A2, ensuring exceptional corrosion resistance and durability. With a flush-mounting countersunk head and slot drive, it's perfect for mechanical assemblies in automotive, machinery, and construction applications. This fastener complies with DIN 963 standards, making it a reliable choice for both indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Countersunk Bolt | Stainless Steel A2 | DIN 963 Compliant | Slot Drive | by Wurth
Brand: Wurth
SKU: 286510
Alternatively Known As: M5 countersunk bolt, stainless steel slot head screw, metric countersunk fastener
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 10 mm
- Head diameter (dk): 9.2 mm
- Head height (k1): 2.5 mm
- Standards: DIN 963
- Material: Stainless steel A2
- Property class: 70
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Slot
- Internal drive: Slot
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.5mm x 10mm x 5mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Countersunk head with slot drive for flush mounting
- Complies with DIN 963 standard
- RoHS-compliant ensuring environmental safety
- Metric thread with 0.8 mm pitch
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening integrity.
Applications
- General fastening applications requiring corrosion resistance
- Mechanical assemblies in automotive, machinery, and construction
- Indoor and outdoor use where stainless steel fasteners are needed
Standards & Compliance
- AS/NZS 4762 – High-Strength Steel Fasteners
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Stainless steel construction enhances durability and reduces replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M5 x 10mm stainless steel countersunk slot head bolt is available for immediate purchase, ideal for mechanical and construction fastening applications.
