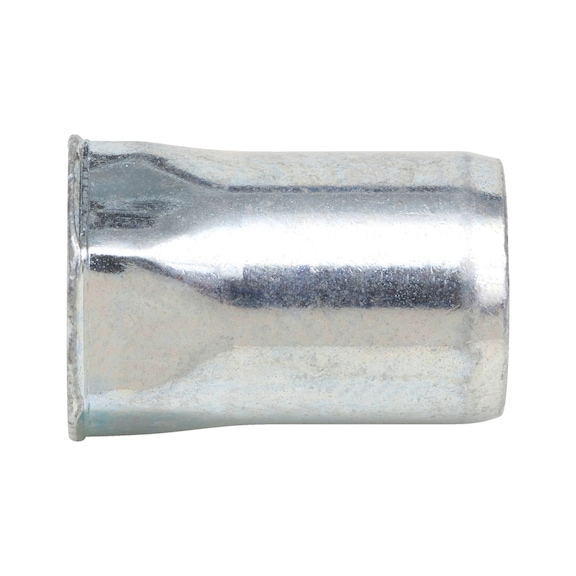

M5 Countersunk Rivet | Stainless Steel A2 | Small Head Design | RoHS Compliant | by Wurth
The M5 Countersunk Rivet is crafted from stainless steel A2, ensuring corrosion resistance and durability. With a small countersunk head design, it provides a flush finish, making it ideal for mechanical fastening in metal, plastic, and composite assemblies. Perfect for industrial manufacturing and automotive applications, this rivet guarantees secure fastening with its partial hexagon shank.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Countersunk Rivet | Stainless Steel A2 | Small Head Design | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 942555
Alternatively Known As: M5 Countersunk Rivet, Stainless Steel Rivet M5, Small Head Rivet
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Thread type x nominal diameter (D): M5
- Width across flats: 7 mm
- Length (l1): 14 mm
- Head diameter (d1): 8 mm
- Head height (k1): 0.9 mm
- Min./max. grip range (s1): 0.5-3 mm
- Tensile fracture load: 11760 N
- Shear-fracture load: 2950 N
- Max. tightening torque: 12 Nm
- Shank detail: With partial hexagon shank
- Head type: Small countersunk head
- Dimensions (H x L x W): 0.9mm x 14mm x 7mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Small countersunk head design for flush finish
- Partial hexagon shank for secure fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening in metal, plastic, and composite assemblies
- Industrial manufacturing and repair
- Automotive and machinery assembly
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Stainless steel construction enhances product longevity and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth Stainless Steel M5 Small Countersunk Head Rivet is available now for immediate purchase. Ideal for industrial, automotive, and mechanical fastening applications.
