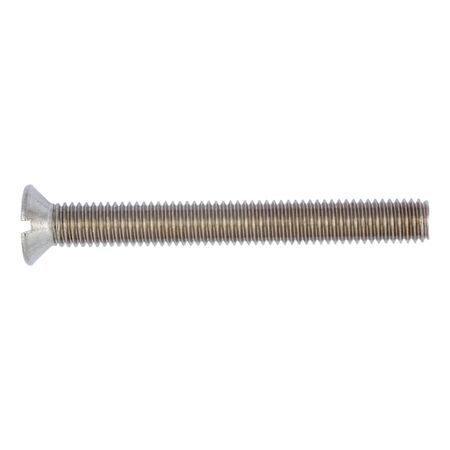

M5 Countersunk Slot Head Bolt | Stainless Steel A2 | DIN 963 Compliant | Corrosion Resistant | by Wurth
The M5 Countersunk Slot Head Bolt is crafted from stainless steel A2, ensuring exceptional corrosion resistance and durability. With a flush mounting design and compliance with DIN 963 standards, this bolt is perfect for mechanical assemblies in automotive, machinery, and construction applications. Ideal for both indoor and outdoor use, it offers reliable fastening solutions for various projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Countersunk Slot Head Bolt | Stainless Steel A2 | DIN 963 Compliant | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 286512
Alternatively Known As: M5 Countersunk Slot Head Bolt, Stainless Steel M5 Bolt, DIN 963 Bolt, Metric Countersunk Screw
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 12 mm
- Head diameter (dk): 9.2 mm
- Head height (k1): 2.5 mm
- Standards: DIN 963
- Material: Stainless steel A2
- Property class: 70
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Slot
- Internal drive: Slot
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.5mm x 12mm x 5mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Countersunk head design for flush mounting
- Slot drive type for easy installation with standard tools
- Complies with DIN 963 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening integrity.
Applications
- General fastening applications requiring corrosion resistance
- Mechanical assemblies in automotive, machinery, and construction
- Indoor and outdoor use where stainless steel fasteners are needed
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Stainless steel construction enhances longevity reducing replacement waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth M5 x 12mm Stainless Steel Countersunk Slot Head Bolt is available for immediate purchase, ideal for mechanical and structural fastening applications.
