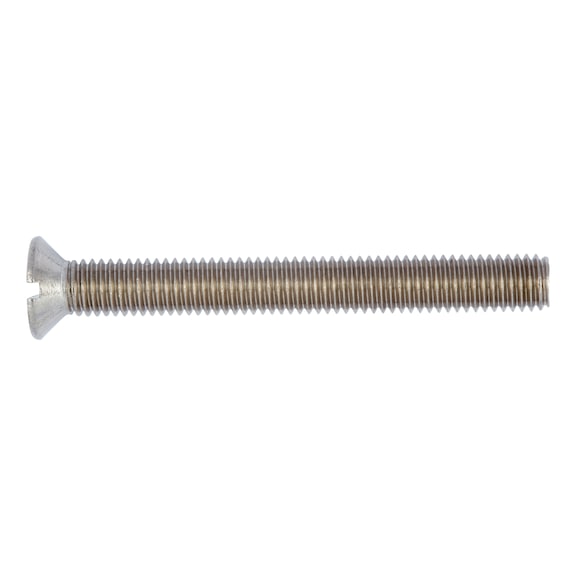

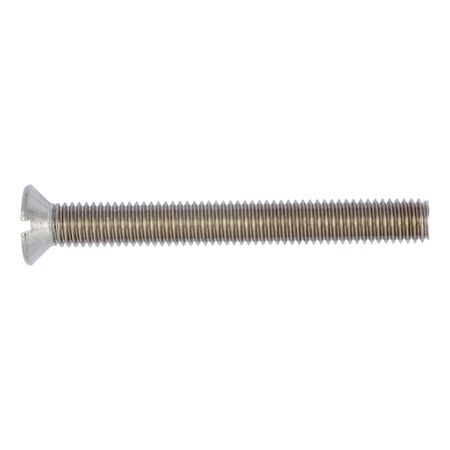

M5 Countersunk Slot Head Bolt | Stainless Steel A2 | DIN 963 Compliant | Corrosion Resistant | by Wurth
The M5 Countersunk Slot Head Bolt is crafted from stainless steel A2, ensuring exceptional corrosion resistance for various fastening applications. With a flush finish and compliance to DIN 963 standards, this bolt is perfect for mechanical assemblies in automotive, machinery, and construction. Ideal for both indoor and outdoor use, it guarantees durability and reliability in every project.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Countersunk Slot Head Bolt | Stainless Steel A2 | DIN 963 Compliant | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 286516
Alternatively Known As: M5 Countersunk Slot Head Bolt, Stainless Steel M5 Bolt, DIN 963 Bolt, Metric Countersunk Screw
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 16 mm
- Head diameter (dk): 9.2 mm
- Head height (k1): 2.5 mm
- Standards: DIN 963
- Material: Stainless steel A2
- Property class: 70
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Slot
- Internal drive: Slot
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.5mm x 16mm x 5mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Countersunk head with slot drive for flush finish
- Complies with DIN 963 standard
- Metric thread with 0.8 mm pitch
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and fastening integrity.
Applications
- General fastening applications requiring corrosion resistance
- Mechanical assemblies in automotive, machinery, and construction
- Indoor and outdoor use where stainless steel fasteners are needed
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel material is recyclable and durable, reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M5 x 16mm Stainless Steel Countersunk Slot Head Bolt is available for immediate purchase, ideal for mechanical and structural fastening applications.
