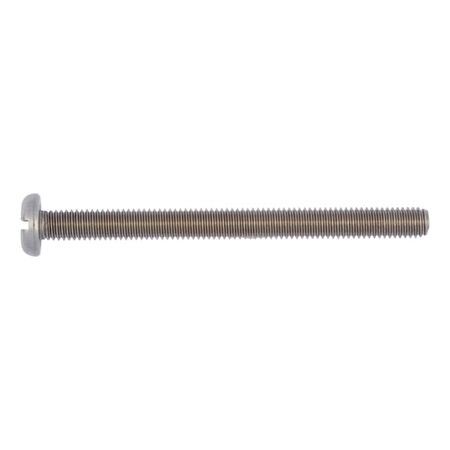

M5 Flat Head Slot Bolt | Stainless Steel A2 | DIN 85 Compliant | Corrosion Resistant | by Wurth
The M5 Flat Head Slot Bolt is designed for general fastening applications in machinery and equipment, featuring a flat head design with a slot drive for easy installation. Made from durable stainless steel A2, it offers excellent corrosion resistance and complies with DIN 85 standards, making it suitable for automotive, construction, and industrial sectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Flat Head Slot Bolt | Stainless Steel A2 | DIN 85 Compliant | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 271520
Alternatively Known As: M5 Flat Head Slot Bolt, Stainless Steel Metric Bolt, DIN 85 Flat Head Screw
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 20 mm
- Head diameter (dk): 10 mm
- Head height (k1): 3 mm
- Standards: DIN 85
- Material: Stainless steel A2
- Property class: 70
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Flat head
- Drive type: Slot
- Internal drive: Slot
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 3mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- Flat head design with slot drive for easy installation
- Made from stainless steel A2 for corrosion resistance
- Complies with DIN 85 standard
- Metric thread with 0.8 mm pitch
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening integrity.
Applications
- General fastening applications in machinery and equipment
- Use in environments requiring corrosion resistance
- Suitable for assembly in automotive, construction, and industrial sectors
Standards & Compliance
- AS/NZS 4762 – High tensile steel bolts with specified mechanical properties
Environmental Benefits
- Stainless steel material is recyclable and durable, reducing replacement frequency and waste.
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth M5 x 20mm Stainless Steel Flat Head Slot Bolt is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
