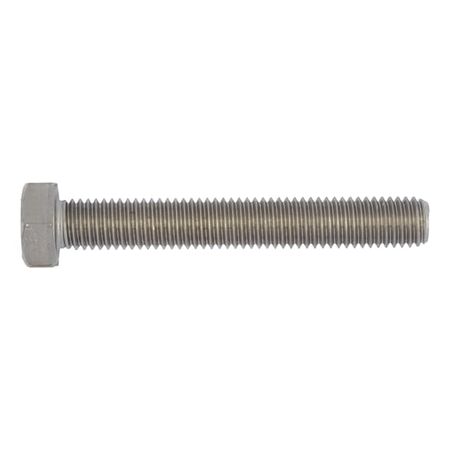

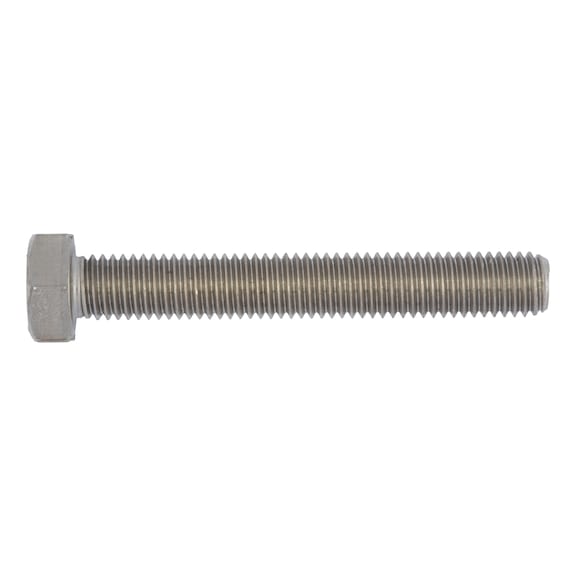

M5 Hex Bolt | Stainless Steel A4 | Hexagon Head | RoHS Compliant | by Wurth
The M5 Hex Bolt is crafted from stainless steel A4, ensuring excellent corrosion resistance and durability. With a hexagon head and outer hexagon drive, it allows for easy tightening, making it ideal for general fastening applications in machinery, automotive, and construction. This bolt features a full metric thread design for secure fastening and is RoHS-compliant, ensuring environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Hex Bolt | Stainless Steel A4 | Hexagon Head | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 91510
Alternatively Known As: M5 Hex Bolt, Stainless Steel Hex Head Bolt, Metric Hex Bolt M5x10
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 10 mm
- Head height (k1): 3.5 mm
- External drive (s1): WS8
- Standards: ISO 4017
- Material: Stainless steel A4
- Property class: 70
- Surface: Plain
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 10mm x 5mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A4 for excellent corrosion resistance
- Hexagon head with outer hexagon drive for easy tightening
- Full metric thread design for secure fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening integrity.
Applications
- General fastening applications in machinery, automotive, and construction
- Suitable for use in environments requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Stainless steel construction enhances product longevity reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth M5 x 10mm Stainless Steel Hexagon Head Bolt is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
