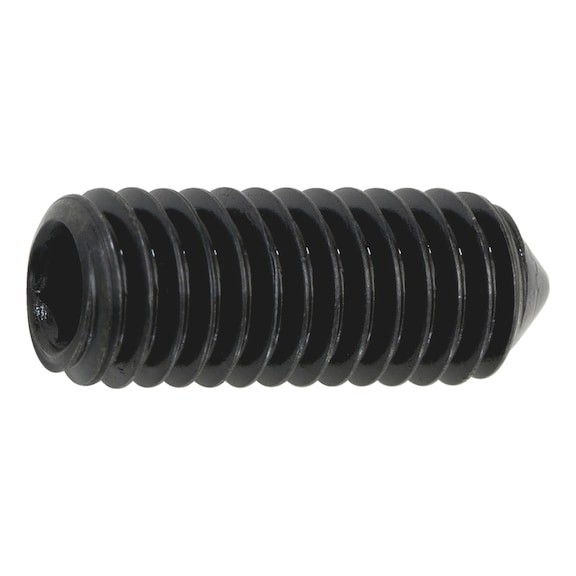

M5 Hex Socket Bolt | 10mm Length | 90 Degree Tip | Steel Material | by Wurth
The M5 Hex Socket Bolt is designed for secure fastening in various applications, featuring a 10mm length and a 90-degree tip for precise engagement. Made from durable steel with a hardness category of 45H, this bolt is ideal for automotive, construction, and industrial maintenance tasks, ensuring reliable performance and compliance with RoHS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Hex Socket Bolt | 10mm Length | 90 Degree Tip | Steel Material | by Wurth
Brand: Wurth
SKU: 256510
Alternatively Known As: M5 Hex Socket Bolt, M5 Tip Bolt, Metric Hexagon Socket Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 10 mm
- Tip diameter (d2): 1.25 mm
- Internal drive (s1): HS2.5
- Angle of the tip: 90 Degree
- Standards: ISO 4027
- Material: Steel
- Hardness category: 45H
- Surface: Plain
- Drive type: Hexagon socket
- Shape of tip: Tip
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 10mm x 5mm
- Weight: 0.1 kg
Key Features
- Hexagon socket drive for secure and easy tightening
- Steel material with 45H hardness category for durability
- Plain surface finish
- Tip shaped at 90 degrees for specific fastening needs
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- General fastening applications in machinery and equipment
- Assembly of metal components requiring precise fastening
- Use in automotive, construction, and industrial maintenance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth M5 x 10mm Hexagon Socket Tip Bolt is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
