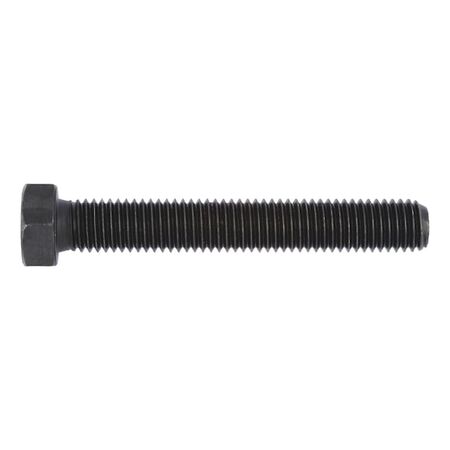

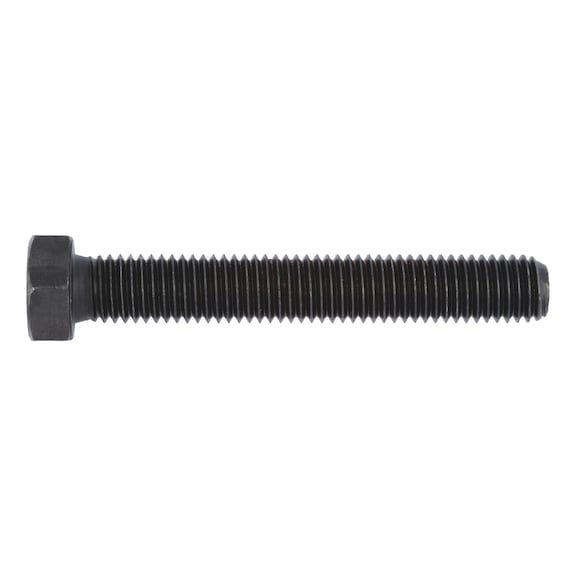

M5 Hexagon Head Bolt | High-Strength Steel | Full Metric Thread | Plain Finish | by Wurth
The M5 Hexagon Head Bolt is crafted from high-strength steel with a property class of 12.9, ensuring secure fastening for mechanical assemblies and industrial applications. Featuring a full metric thread design and a plain surface finish, this bolt is ideal for automotive and construction projects, providing reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Hexagon Head Bolt | High-Strength Steel | Full Metric Thread | Plain Finish | by Wurth
Brand: Wurth
SKU: 61516
Alternatively Known As: Hex bolt M5, Metric hex bolt, Steel hexagon bolt M5x16
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 16 mm
- Head height (k1): 3.5 mm
- External drive (s1): WS8
- Standards: ISO 4017
- Material: Steel
- Property class: 12.9
- Surface: Plain
- Corrosion protection period: 0 h
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 16mm x 5mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Full metric thread design for secure fastening
- Made from high-strength steel with property class 12.9
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring high-strength fastening
- Industrial machinery and equipment
- Automotive and construction applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M5 x 16mm Hexagon Head Bolt is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
