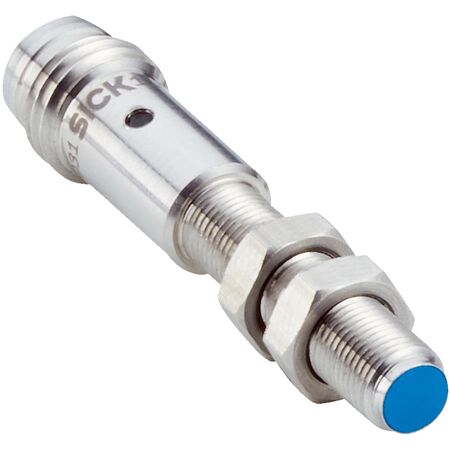

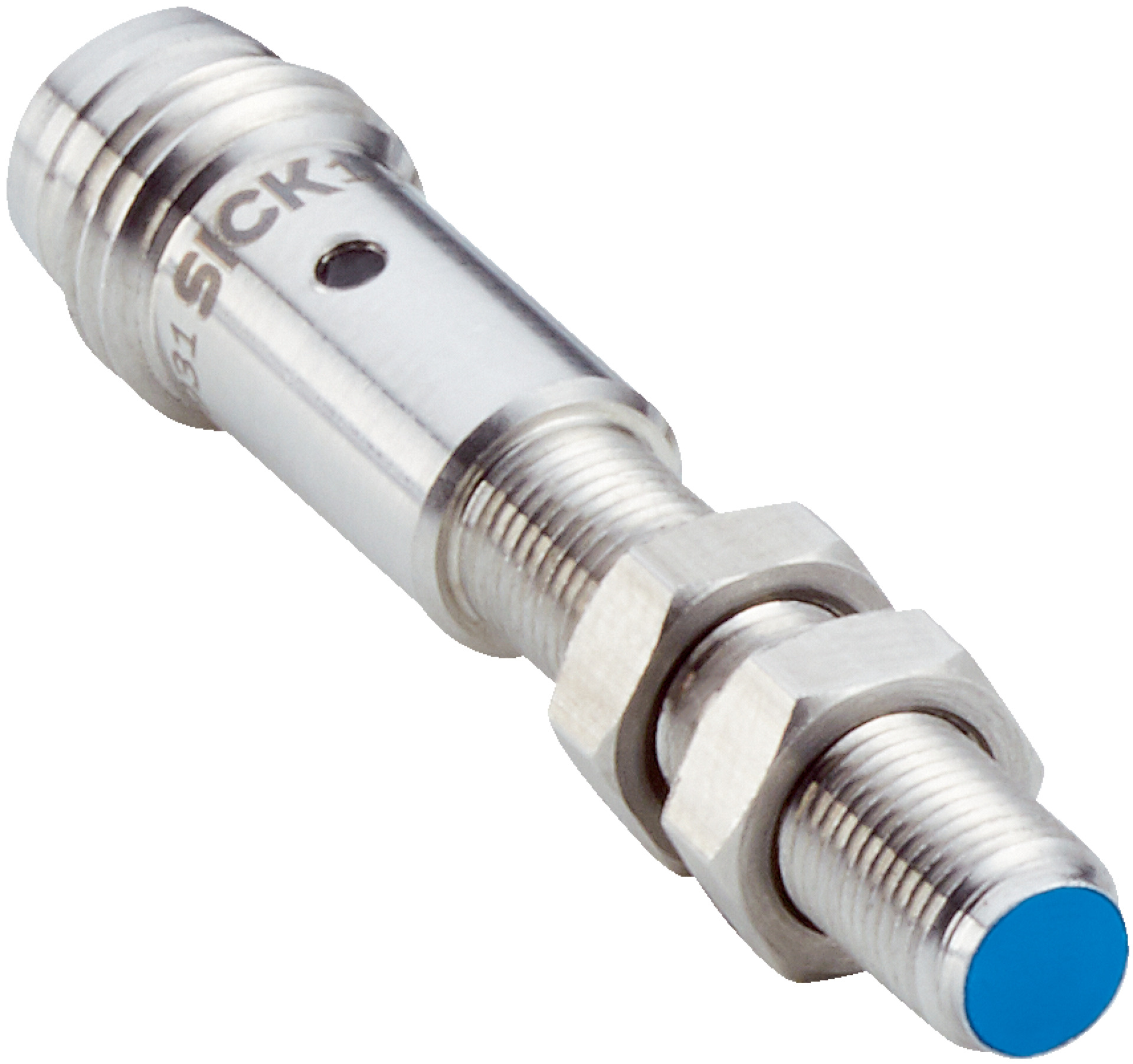

M5 Inductive Proximity Sensor | 0.8mm Sensing Range | IP67 Rated | NPN Output | by SICK
The M5 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 0.8 mm and an IP67 rated enclosure for durability. With a robust stainless steel housing and a switching frequency of up to 5,000 Hz, this sensor is perfect for manufacturing lines and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M5 x 0.5
- Diameter: 5 mm
- Sensing range Sn: 0.8 mm
- Safe sensing range Sa: 0.648 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 38 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 1.5 Nm
- Dimensions (H x L x W): 5mm x 38mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 0.8 mm with safe sensing range of 0.648 mm
- Flush installation type with IP67 rated enclosure
- Switching frequency up to 5,000 Hz with NPN normally open output
- Visual adjustment indicator for easy setup
- Robust stainless steel V2A housing and plastic sensing face
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption contributes to energy efficiency
- Robust design minimizes replacement frequency and material usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM05-0B8NSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and precise proximity sensing applications.
