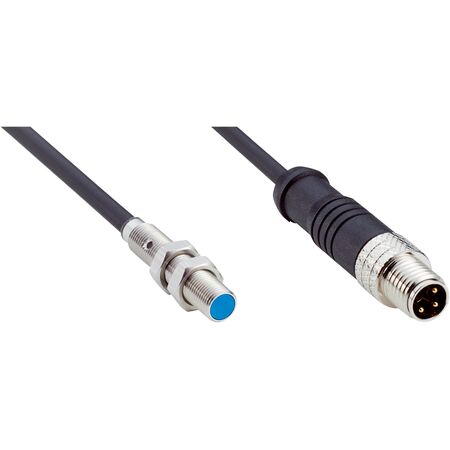

M5 Inductive Proximity Sensor | 2.5mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The M5 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 2.5mm and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 4,000 Hz and IO-Link communication, this sensor is perfect for integration in automated control systems and metal detection applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 100 mA
- Cable material: PUR, diameter 2.9 mm
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Thread length: 23 mm
- Tightening torque max: ≤ 1.5 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- EMC standard: EN 60947-5-2
- UL File No.: NRKH.E348498
- Dimensions (H x L x W): 25mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- Quasi-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- Cable with M8 3-pin connector, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication
- Triple sensing range capability
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Integration in automated control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM05-2B5PSVR8S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
