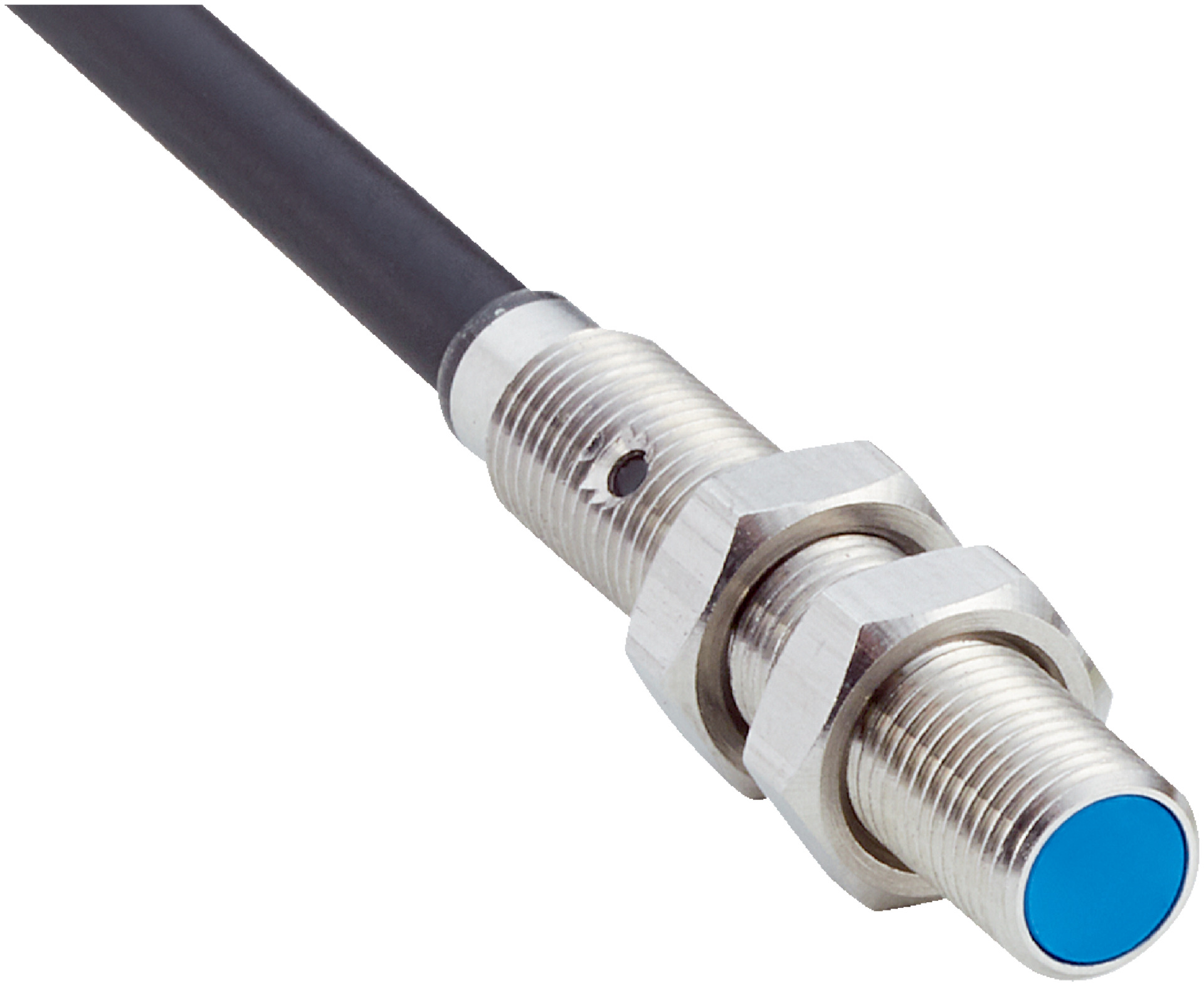

M5 Inductive Proximity Sensor | 2.5mm Sensing Range | PNP Output | IP67 Rated | by SICK
The M5 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a 2.5mm sensing range and a high switching frequency of 4,000 Hz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing lines and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 100 mA
- Cable material: PUR, diameter Ø 2.9 mm, conductor size 0.14 mm²
- Switching output: PNP, normally closed (NC)
- Switching frequency: 4,000 Hz
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Thread size: M5 x 0.5
- Housing length: 25 mm
- Thread length: 23 mm
- Tightening torque max: ≤ 1.5 Nm
- Dimensions (H x L x W): 5mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- Quasi-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NC output function
- Cable connection type: 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and triple sensing range
- Mounting accessories included: stainless steel nuts and washers
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide operating temperature range from -10 °C to +60 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of plastic LCP
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

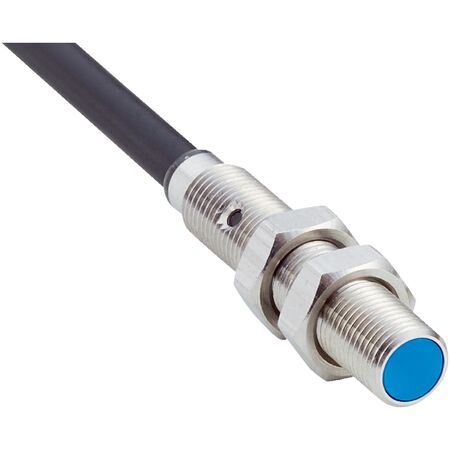

The SICK IMM05-2B5POVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
