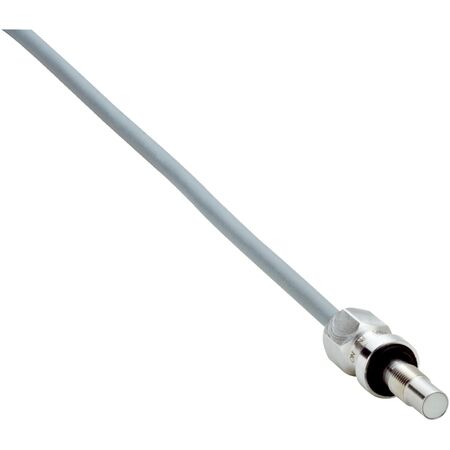

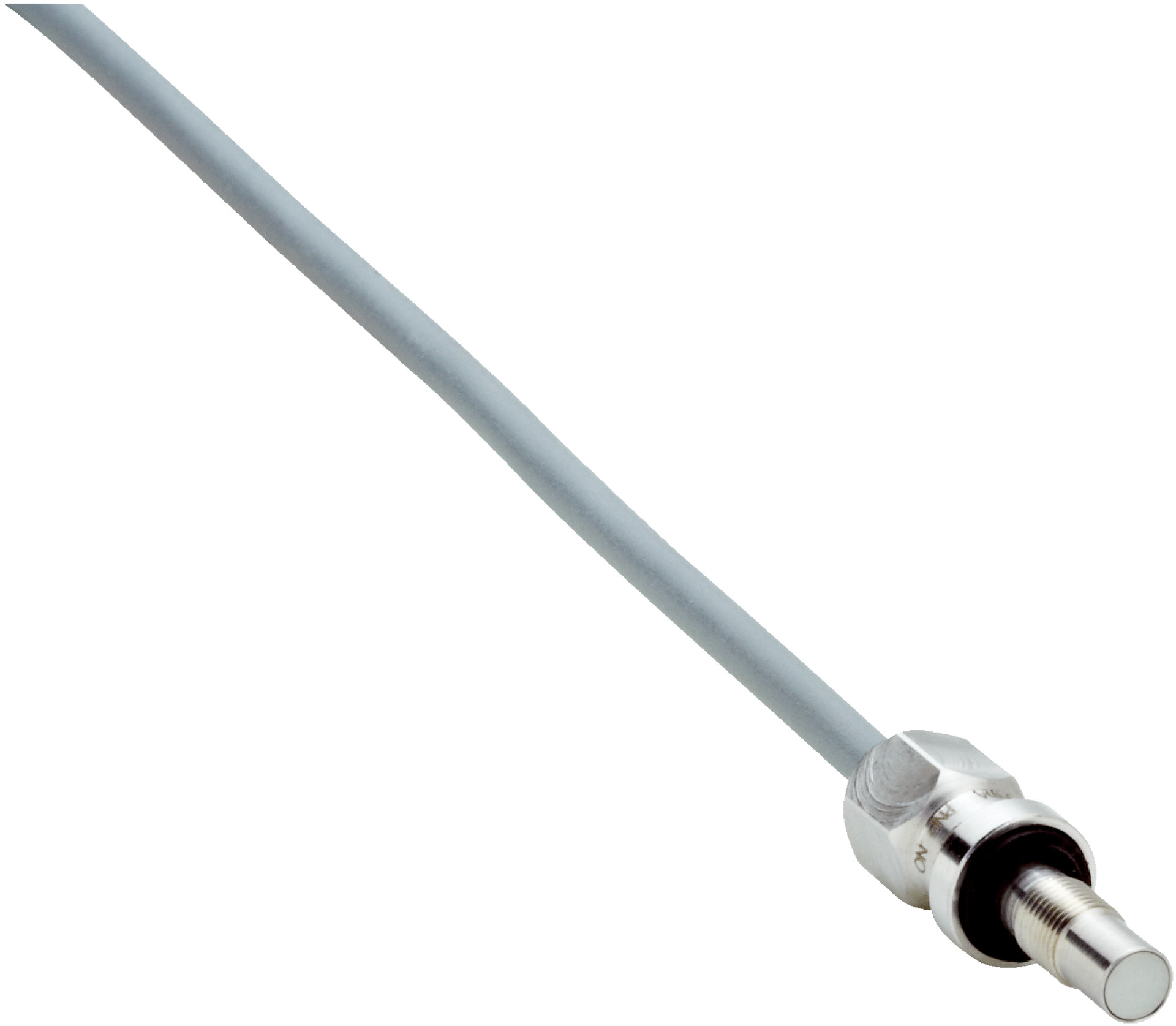

M5 Inductive Proximity Sensor | High Pressure Resistance | IP68 Rated | 1mm Sensing Range | by SICK
The M5 Inductive Proximity Sensor is designed for hydraulic applications, offering high pressure resistance up to 500 bar and an IP68 rated enclosure for superior protection. With a sensing range of 1mm and robust materials, it's perfect for industrial automation and environments with high shock and vibration, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ±10% to ±15%
- Continuous current: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Cable material: PUR, diameter 3.4 mm
- Bending radius: >10x cable diameter fixed, >15x flexible
- Housing material: Phynox (DIN 2.4711)
- Sensing face material: Ceramics (ZrO2)
- Supporting ring material: FPM
- Tightening torque max: ≤ 5 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 27mm x 27mm x 5mm
- Weight: 0.1 kg
Key Features
- Metric housing with M5 x 0.5 thread size
- Diameter of 5 mm with flush installation type
- Pressure resistance up to 500 bar
- Sensing range of 1 mm with safe sensing range of 0.8 mm
- Switching frequency of 1,000 Hz with PNP normally open output
- Cable with M8 3-pin connector, 0.3 m length
- IP68 rated enclosure for high protection
- High temperature resistance from -25 °C to +100 °C
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting torque and electrical connections for optimal sensor performance and safety.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Environments with high shock and vibration
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy efficient operation with low voltage DC supply
- Robust materials extend product lifecycle in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMP05-01BPSVR9S inductive sensor is available for immediate purchase, ideal for hydraulic and industrial sensing applications requiring high pressure and temperature resistance.
