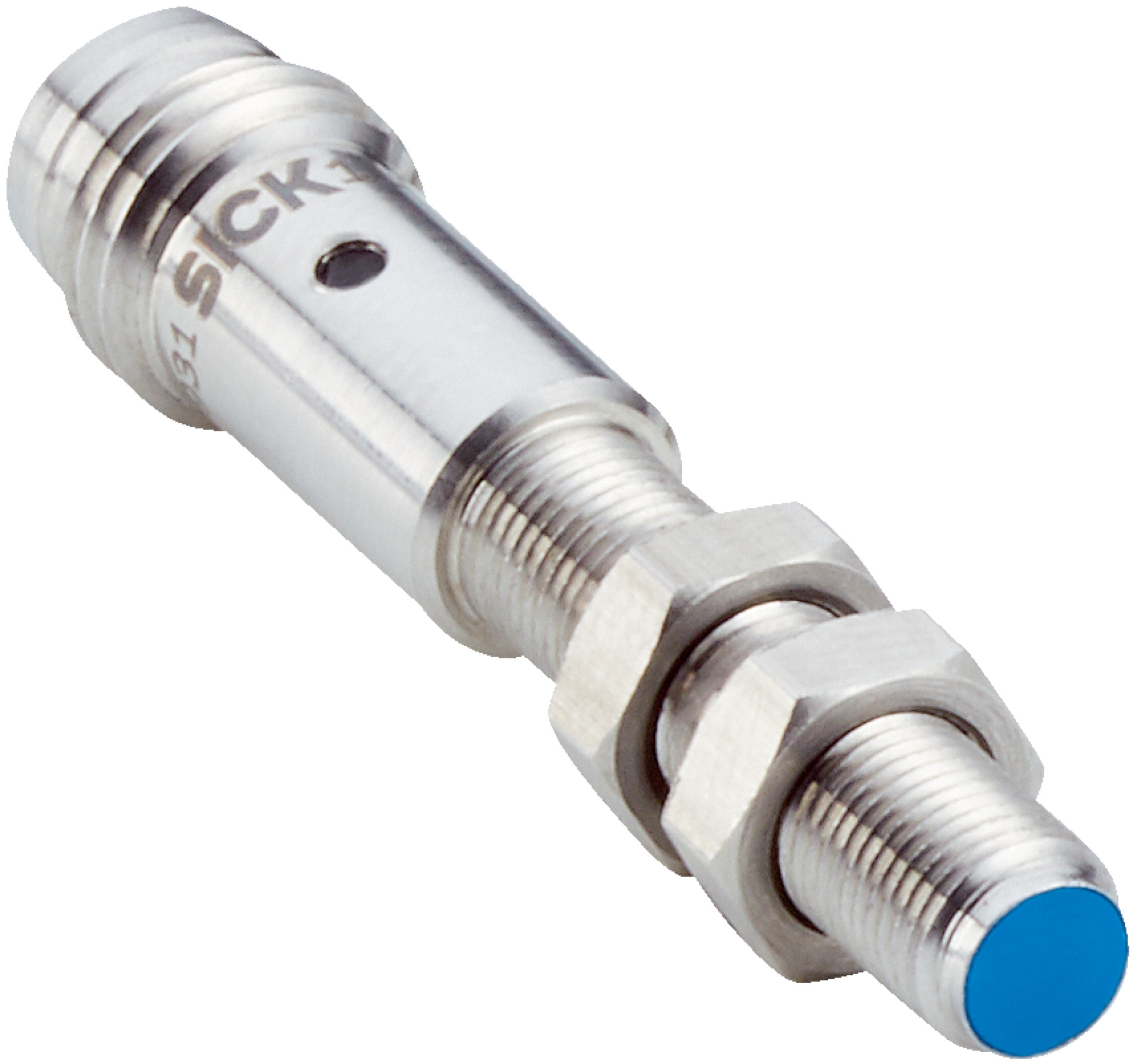

M5 Inductive Proximity Sensor | IP67 Rated | 0.8mm Sensing Range | 5000Hz Switching Frequency | by SICK
The M5 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a robust IP67-rated stainless steel housing and a sensing range of 0.8 mm. With a high switching frequency of 5,000 Hz and PNP normally open output, this sensor is perfect for applications requiring flush installation and reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M5 x 0.5
- Diameter: 5 mm
- Sensing range Sn: 0.8 mm
- Safe sensing range Sa: 0.648 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- EMC standard: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 38 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 1.5 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 5mm x 38mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 0.8 mm with safe sensing range of 0.648 mm
- Flush installation type with IP67 enclosure rating
- Switching frequency up to 5,000 Hz with PNP normally open output
- Visual adjustment indicator and IO-Link communication interface
- Robust stainless steel V2A housing and plastic sensing face
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and configuration of the sensor and IO-Link interface.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

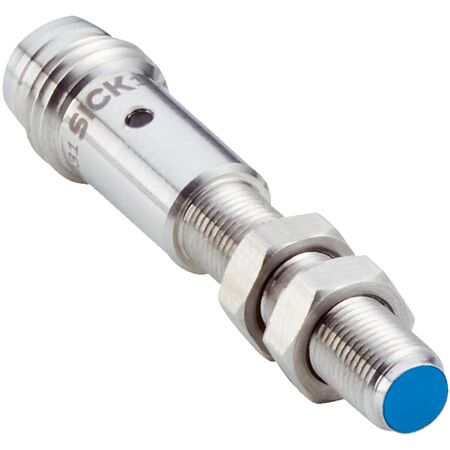

The SICK IMM05-0B8PSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and precise metal detection applications.
