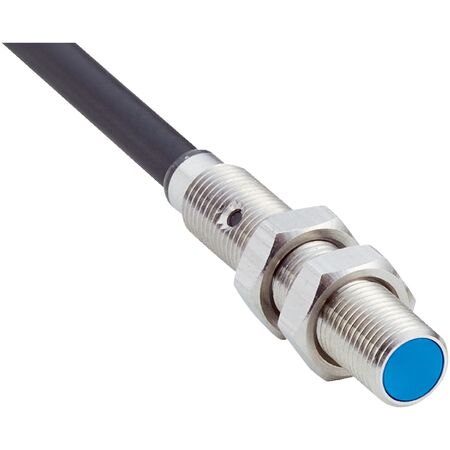

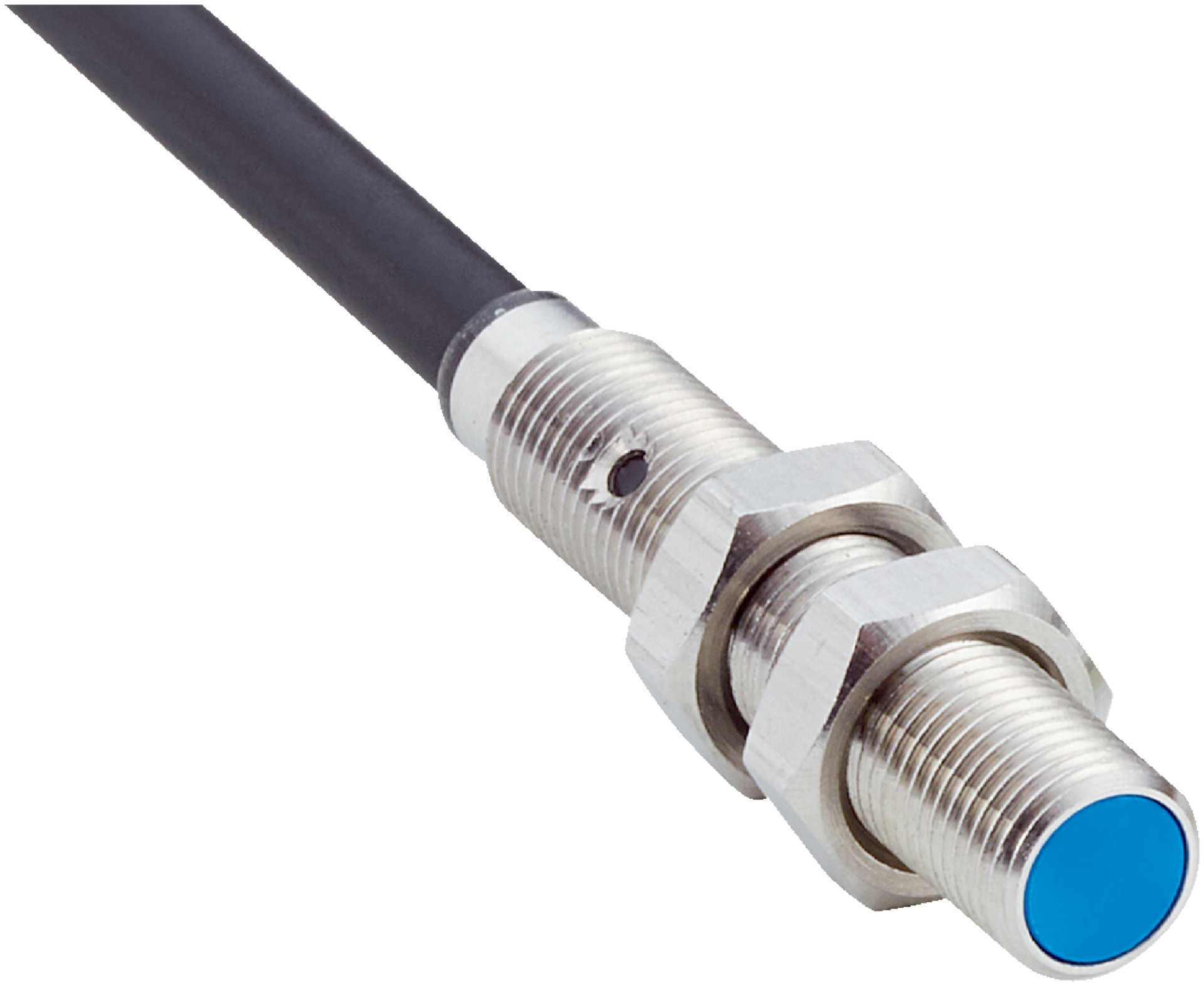

M5 Inductive Proximity Sensor | IP67 Rated | 0.8mm Sensing Range | 5000 Hz Switching Frequency | by SICK
The M5 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 0.8 mm and an IP67 enclosure rating for durability. With a high switching frequency of up to 5,000 Hz and a robust stainless steel housing, this sensor is perfect for metal detection and position sensing in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable diameter: Ø 2.9 mm, conductor size 0.14 mm²
- Short-circuit and power-up pulse protection included
- EMC compliant with EN 60947-5-2
- MTTFD: 1,350 years, Mission time: 20 years
- Dimensions (H x L x W): 5mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 0.8 mm with safe sensing range of 0.648 mm
- Flush installation type with IP67 enclosure rating
- Switching frequency up to 5,000 Hz with PNP normally closed output
- Visual adjustment indicator for easy setup
- Cable connection type: 3-wire, 2 m PUR cable
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303) with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
- Safety and control systems in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient switching output
- Robust design minimizes replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMM05-0B8POVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
